Active Layer Transport
The following is inspired on well-known active layer approaches in river bed sediment transport [4] [5] [1]. All quantities with subscript $f$ are facies dependent. Sediment is measured in meters of deposited material. $P_f$ is the production of sediment per facies in $m/s$. Further unit calculations would be more readable if we consider the unit of sediment as separate, so for instance it doesn't cancel against $m^2$ in the units of sediment flux. In the implementation, $\nu$ has the units of ${\rm m}$ which is totaly weird. TBC
In a model without transport, we could write
\[\sigma + \sum_f {{\partial \eta_f} \over {\partial t}} = \sum_f P_f,\]
where $\sigma$ is the subsidence rate in $m/s$. We consider the mass balance for each facies separately.
We suppose that loose sediment, either fresh production or disintegrated older sediment, is being transported in a layer on top of the sea bed. The flux in this layer is assumed to be directly proportional to the local slope of the sea bed $| \nabla_x \eta_* |$, where $\eta_* = \sum_f \eta_f$, the sum over all facies contributions, including $\eta_0$, the initial bedrock eleveation.
The active layer now contains a concentration $C_f$ particles of different grain size (for each facies $f$). If needed, $C_f = \alpha_f P_f$ where $\alpha_f$ is some facies parameter determining the fraction of production that is available for transport. The sediment flux is given as,
\[{\bf q_f} = -\nu_f C_f {\bf \nabla_x} \eta_*.\]
The following is the mass balance:
\[\sigma + {{\partial \eta_*} \over {\partial t}} = -\sum_f {\bf \nabla_x} \cdot {\bf q_f} + \sum_f P_f,\]
In our modelling we keep track of individual contributions per facies over time [2].
Combining these equations, and ignoring subsidence for the moment (which is a global effect and can't be expressed on a per-facies basis), we get a component-wise diffusion equation
\[{{\partial \eta_f(x)}\over{\partial t}} = {\bf \nabla_x} \cdot \big[ \nu_f \alpha_f\ P_f(x)\ {\bf \nabla_x} \eta_{*}(x) \big] + P_f(x),\]
In our model we need to solve this equation one time-step each iteration. If we solve this using forward methods, we should be reminded of the CFL limit for diffusion equations (depending on the diffusion constants and grid size we shouldn't pick the time steps too large). Alternatively, for these two-dimensional situations, an implicit approach is feasible. Also we should take care that somehow $\nabla(\nu\alpha P \nabla \eta) + P > 0$. The interpretation being that we can't transport more than we produce, even if there is capacity to do so.
To solve this equation, it is nicer to expand the transport-diffusion term using the product rule, in short notation:
\[\partial_t \eta_f = \nu' \nabla P_f(x) \cdot \nabla \eta(x) + \nu' P_f(x) \nabla^2 \eta(x) + P_f(x),\]
where $\nu' = \nu_f \alpha_f$
So we have a advection component with velocity $\nu' \nabla P_f$ and a diffusion component with a coefficient $\nu' P_f$.
As part of the production $P_f$ we disintegrate older sediment at a fixed rate.
Transport parameters
Disintegration transfer
disintegration_transfer is a function that determines how the disintegrated material from each facies is allocated to the facies in the active layer.
Default behavior
By default (ActiveLayer.jl), disintegration_transfer is the identity function x -> x, i.e. disintegrated sediment is added back to the same facies it came from.
Usage examples
For three autochthonous (produced in situ) facies and their transported equivalents, one may define:
disintegration_transfer = x -> [0.0u"m", 0.0u"m", 0.0u"m", x[1]+x[4], x[2]+x[5], x[3]+x[6]]The transfer function takes the produced sediment vector x, sets facies 1-3 to zero and moves all the transported material into the "transported" facies (4-6).

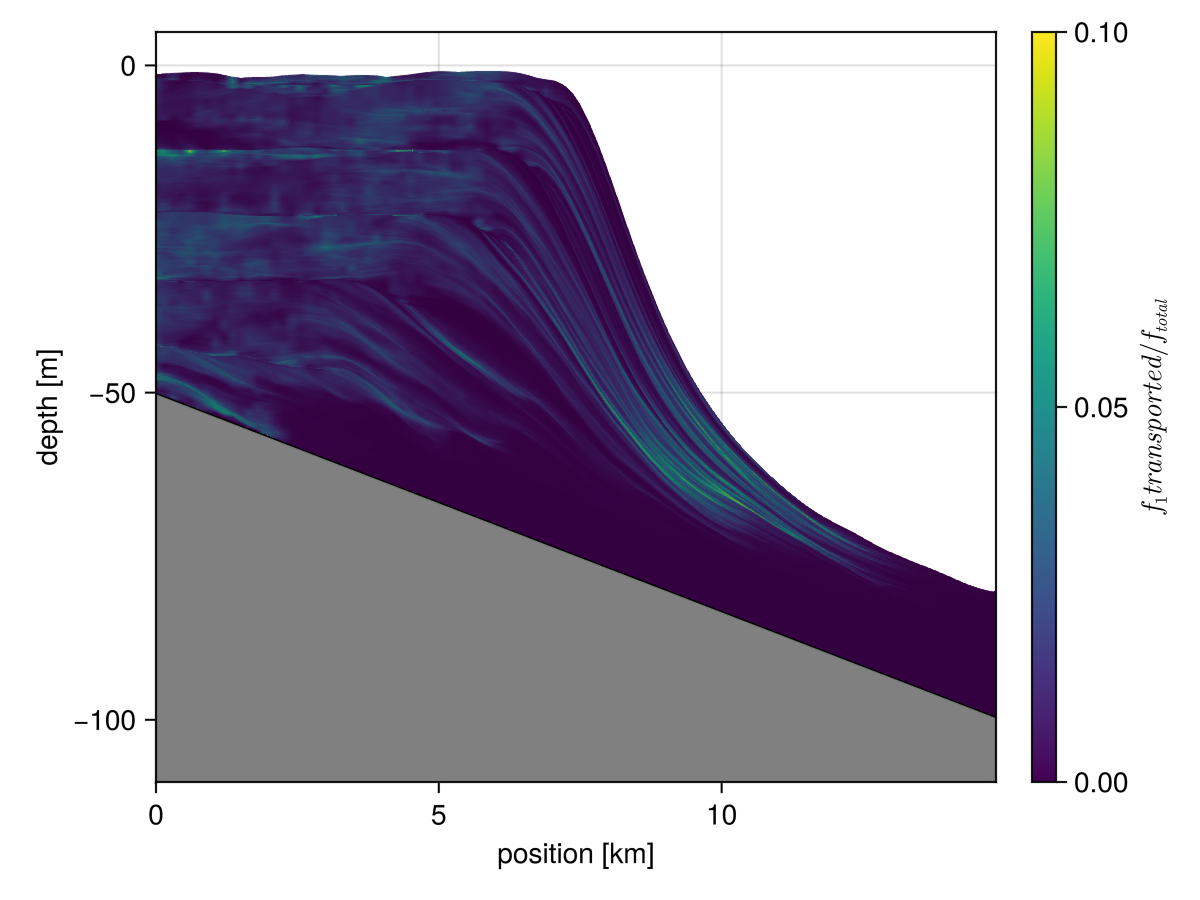

Transporting only 50% of disintegrated material into "transported" facies would look like this:
disintegration_transfer = x -> [x[1]*0.5, x[2]*0.5, x[3]*0.5,
                                 x[1]*0.5+x[4], x[2]*0.5+x[5], x[3]*0.5+x[6]]for the same number (3) of initial and transported facies. When defining a transfer function, you should make sure that it conserves mass i.e. all the disintegrated sediment must be reallocated to somewhere.
Tests
A simple unit test verifies that the sediment is redistributed across facies as expected:
module ActiveLayerSpec
using Test
using CarboKitten.Components: ActiveLayer as AL
using CarboKitten.Components.Common
@testset "Components/ActiveLayer" begin
    @testset "Disintegration transfer" begin
        let facies = fill(AL.Facies(), 4),
            input = AL.Input(
                box = Box{Periodic{2}}(grid_size=(10, 1), phys_scale=1.0u"m"),
                time = TimeProperties(Δt=1.0u"kyr", steps=10),
                facies=facies,
                disintegration_transfer = x -> [0.0u"m", 0.5*x[2], x[1]+x[3], x[4]+0.5*x[2]],
            )
            state = AL.State(
                step = 0,
                sediment_height = zeros(Height, input.box.grid_size...),
                sediment_buffer = zeros(Float64, input.sediment_buffer_size, AL.n_facies(input), input.box.grid_size...),
                active_layer=zeros(Amount, AL.n_facies(input), input.box.grid_size...))
            d = ones(Amount, AL.n_facies(input), input.box.grid_size...)
            dtf = input.disintegration_transfer
            state.active_layer .+= dtf(d)
            @test all(state.active_layer[1,:] .≈ 0.0u"m")
            @test all(state.active_layer[2,:] .≈ 0.5u"m")
            @test all(state.active_layer[3,:] .≈ 2.0u"m")
            @test all(state.active_layer[4,:] .≈ 1.5u"m")
            @test sum(state.active_layer[:,1,1]) ≈ sum(d[:,1,1])
        end
    end
end
endTest 1: production transport
Suppose we have an incline in one direction, as per usual on a coastal slice. Production is happening in a circular patch in our box, with constant rate. In addition, we'll release the top 1m of sediment for further transport.
Test model
module ActiveLayer
using Unitful
using CarboKitten.Config: Box, axes
using CarboKitten.BoundaryTrait: Shelf
using CarboKitten.Utility: in_units_of
using CarboKitten.Transport.ActiveLayer: pde_stencil, Amount, Rate
<<example-active-layer>>
endOur input structure facilitates a single facies, specifying an initial bedrock elevation, sediment layer and a function for a location dependent constant production rate. The transport is parametrized by a disintegration rate and a diffusion coefficient.
@kwdef struct Input
    box
    Δt::typeof(1.0u"Myr")
    t_end::typeof(1.0u"Myr")
    initial_topography   # function (x::u"m", y::u"m") -> u"m"
    initial_sediment    # function (x::u"m", y::u"m") -> u"m"
    production          # function (x::u"m", y::u"m") -> u"m/s"
    disintegration_rate::typeof(1.0u"m/Myr")
    subsidence_rate::typeof(1.0u"m/Myr")
    diffusion_coefficient::typeof(1.0u"m/yr")
endProduction patch
Establish a grid of 100x50, 15km on each side, dropping from 0 to 50m depth. Keeping the disintegration rate to a similar value as the production rate seems a sensible choice.
production_patch(center, radius, rate) = function(x, y)
    (pcx, pcy) = center
    (x - pcx)^2 + (y - pcy)^2 < radius^2 ?
        rate :
        0.0u"m/Myr"
end
const input = Input(
    box=Box{Shelf}(grid_size=(100, 50), phys_scale=150.0u"m"),
    Δt=0.001u"Myr",
    t_end=1.0u"Myr",
    initial_topography = (x, y) -> -x / 300.0,
    initial_sediment = (x, y) -> 0.0u"m",
    production = production_patch(
        (5000.0u"m", 3750.0u"m"),
        2.0u"km",
        50.0u"m/Myr"),
    disintegration_rate = 50.0u"m/Myr",
    subsidence_rate = 50.0u"m/Myr",
    diffusion_coefficient = 10.0u"m/yr"
)
Plotting code
#| requires: examples/transport/active-layer.jl
#| creates: docs/src/_fig/active-layer-production-patch.png
#| collect: figures
include("active-layer.jl")
using Unitful
using CarboKitten.Config: axes
using CarboKitten.Utility: in_units_of
using CairoMakie
using .ActiveLayer: input
function main()
  (x, y) = axes(input.box)
  η = input.initial_topography.(x, y')
  p = input.production.(x, y')
  fig = Figure()
  ax = Axis3(fig[1,1], xlabel="x (km)", ylabel="y (km)", zlabel="η (m)", azimuth=5π/3)
  surface!(ax, x |> in_units_of(u"km"), y |> in_units_of(u"km"), η |> in_units_of(u"m"), color = p |> in_units_of(u"m/Myr"))
  save("docs/src/_fig/active-layer-production-patch.png", fig)
end
main()Solving the PDE
Just as a reminder:
\[\partial_t \eta_f = \nu' \nabla P_f(x) \cdot \nabla \eta(x) + \nu' P_f(x) \nabla^2 \eta(x) + P_f(x)\]
Below is the kernel encoding a central differencing scheme i.e. [-1, 0, 1]/(2Δx) for first derivative and [0 -1 0; -1 4 -1; 0 -1 0]/Δx^2 for the laplacian.
module ActiveLayer
using Unitful
using StaticArrays
using ...BoundaryTrait
using ...Boxes: Box
using ...Stencil: stencil!
const Rate = typeof(1.0u"m/Myr")
const Amount = typeof(1.0u"m")
function pde_stencil(box::Box{BT}, Δt, ν, out, η, C) where {BT<:Boundary{2}}
    Δx = box.phys_scale
    d = ν * Δt
    stencil!(BT, Size(3, 3), out, η, C) do η, C
        adv = d * ((η[3, 2] - η[1, 2]) * (C[3, 2] - C[1, 2]) +
                   (η[2, 3] - η[2, 1]) * (C[2, 3] - C[2, 1])) /
              (2Δx)^2
        dif = d * C[2, 2] * (η[3, 2] + η[2, 3] + η[1, 2] +
                             η[2, 1] - 4 * η[2, 2]) / (Δx)^2
        prd = C[2, 2]
        max(0.0u"m", adv + dif + prd)
    end
end
endModel loop
Every iteration we determine the maximum disintegrated sediment. If the total amount of sediment is smaller than the maximum, then that amount is disintegrated instead. We compute the concentrations in the active layer in terms of amounts of sediment, so $P \Delta t$. Since $P$ appears in every term of the PDE, we're free to do so.
mutable struct State
    time::typeof(1.0u"Myr")
    sediment::Matrix{typeof(1.0u"m")}
end
function initial_state(input)
    x, y = axes(input.box)
    State(0.0u"Myr", input.initial_sediment.(x, y'))
end
struct Frame
    t::typeof(1.0u"Myr")
    δ::Matrix{Amount}
end
function propagator(input)
    δ = Matrix{Amount}(undef, input.box.grid_size...)
    x, y = axes(input.box)
    μ0 = input.initial_topography.(x, y')
    box = input.box
    Δt = input.Δt
    disintegration_rate = input.disintegration_rate
    production = input.production
    d = input.diffusion_coefficient
    function active_layer(state)
        max_amount = disintegration_rate * Δt
        amount = min.(max_amount, state.sediment)
        state.sediment .-= amount
        production.(x, y') * Δt .+ amount
    end
    function (state)
        p = active_layer(state)
        pde_stencil(box, Δt, d, δ, state.sediment .+ μ0, p)
        return Frame(state.time, δ)
    end
end
function run_model(input)
    state = initial_state(input)
    prop = propagator(input)
    Channel{State}() do ch
        while state.time < input.t_end
            Δ = prop(state)
            state.sediment .+= Δ.δ
            state.time += input.Δt
            put!(ch, state)
        end
    end
endRunning the model
We run the model with 1000 time steps but only inspect one in every 100.

Plotting code
#| requires: examples/transport/active-layer.jl
#| creates: docs/src/_fig/active-layer-test.png
#| collect: figures
module ActiveLayerPlot
include("active-layer.jl")
using CairoMakie
using Unitful
using CarboKitten.Config: axes
using CarboKitten.Utility: in_units_of
using .ActiveLayer: input, run_model
function main()
  result = Iterators.map(deepcopy,
      Iterators.filter(x -> mod(x[1], 100) == 0, enumerate(run_model(input)))) |> collect
    (x, y) = axes(input.box)
    η = input.initial_topography.(x, y') .+ result[10][2].sediment .- input.subsidence_rate * result[10][2].time
    # p = input.production.(x, y')
    fig = Figure(size=(800, 1000))
    ax = Axis3(fig[1:2,1], xlabel="x (km)", ylabel="y (km)", zlabel="η (m)", azimuth=5π/3)
    surface!(ax, x |> in_units_of(u"km"), y |> in_units_of(u"km"), η |> in_units_of(u"m"))
    ax2 = Axis(fig[3,1], xlabel="x (km)", ylabel="η (m)")
    for i in 1:10
        η = input.initial_topography.(x, y') .+ result[i][2].sediment .- input.subsidence_rate * result[i][2].time
        lines!(ax2, x |> in_units_of(u"km"), η[:, 25] |> in_units_of(u"m"))
    end
    save("docs/src/_fig/active-layer-test.png", fig)
end
end
ActiveLayerPlot.main()Note in the bottom figure, due to sedimentation not keeping up with subsidence, the lines go down in time. We see the sediment transport being favoured to downslope areas, which is what we want. This effect could be made more extreme by increasing the disintegration rate.
One-dimensional tests
<<plot-1d-evolution>>using Printf: @sprintf
using Unitful: ustrip
function plot_1d_evolution!(ax::Axis, input, every=100)
	y_idx = 1
	(x, y) = box_axes(input.box)
	state = ALCAP.initial_state(input)
	plot_state() = begin
		t = state.step * input.time.Δt
		η = input.initial_topography.(x, y') .+
            state.sediment_height .-
            input.subsidence_rate * t
		lines!(ax, x |> in_units_of(u"km"), η[:, y_idx] |> in_units_of(u"m"),
               label=@sprintf("%.3f Myr", ustrip(t)))
	end
	plot_state()
	run_model(Model{ALCAP}, input, state) do i, _
		if mod(i, every) == 0
			plot_state()
		end
	end
end
function plot_1d_evolution(input, every=100)
	fig = Figure()
	ax = Axis(fig[1, 1], xlabel="x (km)", ylabel="η (m)")
    plot_1d_evolution!(ax, input, every)
	Legend(fig[1, 2], ax)
	fig
endmodule Testing
using ..CarboKitten
using ..Models.ALCAP
using Unitful
using GeometryBasics
transport_test_input(;
	initial_topography = (x, y) -> 0.0u"m",
	initial_sediment = (x, y) -> 0.0u"m",
	disintegration_rate = 50.0u"m/Myr",
	subsidence_rate = 0.0u"m/Myr",
	diffusion_coefficient = 0.0u"m/yr",
	wave_velocity = _ -> (Vec2(0.0, 0.0)u"m/yr", Vec2(0.0, 0.0)u"1/yr"),
    intertidal_zone = 0.0u"m") =
	ALCAP.Input(
		box = CarboKitten.Box{Coast}(grid_size=(120, 1), phys_scale=125.0u"m"),
		time = TimeProperties(
			Δt = 0.001u"Myr",
			steps = 1000),
		facies = [ALCAP.Facies(
			initial_sediment = initial_sediment,
			diffusion_coefficient = diffusion_coefficient,
			wave_velocity = wave_velocity,
			maximum_growth_rate = 0.0u"m/Myr",
			extinction_coefficient = 0.8u"m^-1",
			saturation_intensity = 60u"W/m^2"
		)],
		disintegration_rate = disintegration_rate,
		initial_topography = initial_topography,
		insolation = 400.0u"W/m^2",
		sediment_buffer_size = 5,
		depositional_resolution = 1000.0u"m",
		transport_solver = Val{:forward_euler},
        subsidence_rate = subsidence_rate,
        intertidal_zone = intertidal_zone)
endErosion
The erosion scenario tests that sharp sediment profiles erode under diffusive transport.
#| creates: docs/src/_fig/1d-erosion.svg
#| collect: figures
module Script
    using CarboKitten
    using CarboKitten.Testing: transport_test_input
    using CairoMakie
    include("plot-1d-evolution.jl")
	function initial_sediment(x, y)
	  if x < 5.0u"km"
	    return 30.0u"m"
	  end
	  if x > 10.0u"km" && x < 11.0u"km"
	    return 20.0u"m"
	  end
	  return 5.0u"m"
	end
    function main()
        CairoMakie.activate!()
        input = transport_test_input(
            initial_topography = (x, y) -> -30.0u"m",
            initial_sediment = initial_sediment,
            diffusion_coefficient = 10.0u"m/yr")
        fig = plot_1d_evolution(input, 250)
        save("docs/src/_fig/1d-erosion.svg", fig)
    end
end
Script.main()Advection
To test advective properties, we set disintegration rate to infinity, This way, surface gradients are zero and we get pure advection.
#| creates: docs/src/_fig/1d-advection.svg
#| collect: figures
module Script
    using CarboKitten
    using CarboKitten.Testing: transport_test_input
    using CairoMakie
    include("plot-1d-evolution.jl")
    function gaussian_initial_sediment(x, y)
        exp(-(x-10u"km")^2 / (2 * (0.5u"km")^2)) * 30.0u"m"
    end
    v_const(v_max) = _ -> (Vec2(v_max, 0.0u"m/yr"), Vec2(0.0u"1/yr", 0.0u"1/yr"))
    function main()
        CairoMakie.activate!()
        input = transport_test_input(
            initial_topography = (x, y)  -> -31.0u"m",
            initial_sediment = gaussian_initial_sediment,
            disintegration_rate = 50000.0u"m/Myr",
            wave_velocity = v_const(-5u"km/Myr")
        )
        fig = plot_1d_evolution(input, 250)
        save("docs/src/_fig/1d-advection.svg", fig)
    end
end
Script.main()Onshore transport
This test shows the difference between having a velocity profile without and with shear.
#| creates: docs/src/_fig/1d-onshore.svg
#| collect: figures
module Script
    using CarboKitten
    using CarboKitten.Testing: transport_test_input
    using CairoMakie
    include("plot-1d-evolution.jl")
    v_prof(v_max, max_depth, w) =
        let k = sqrt(0.5) / max_depth,
            A = 3.331 * v_max,
            α = tanh(k * w),
            β = exp(-k * w)
            (A * α * β, -A * k * β * (1 - α - α^2))
        end
    v_const(v_max) = _ -> (Vec2(v_max, 0.0u"m/yr"), Vec2(0.0u"1/yr", 0.0u"1/yr"))
    v_prof_par(v_max, max_depth) = w -> let (v, s) = v_prof(v_max, max_depth, w)
        (Vec2(v, 0.0u"m/yr"), Vec2(s, 0.0u"1/yr"))
    end
    function main()
        CairoMakie.activate!()
        fig = Figure(size=(1000, 500))
        ax1 = Axis(fig[1, 1], xlabel="x (km)", ylabel="η (m)")
        input1 = transport_test_input(
            initial_topography = (x, y) -> -x / 375.0 - 10u"m",
            initial_sediment = 10.0u"m",
            disintegration_rate = 50.0u"m/Myr",
            diffusion_coefficient = 5.0u"m/yr",
            wave_velocity = v_const(-0.5u"m/yr")
        )
        plot_1d_evolution!(ax1, input1, 250)
        ax2 = Axis(fig[1, 2], xlabel="x (km)", ylabel="η (m)")
        input2 = transport_test_input(
            initial_topography = (x, y) -> -x / 375.0 - 10u"m",
            initial_sediment = 10.0u"m",
            disintegration_rate = 50.0u"m/Myr",
            diffusion_coefficient = 5.0u"m/yr",
            wave_velocity = v_prof_par(-0.5u"m/yr", 20u"m")
        )
        plot_1d_evolution!(ax2, input2, 250)
        Legend(fig[1, 3], ax2)
        save("docs/src/_fig/1d-onshore.svg", fig)
    end
end
Script.main()Active Layer Component
@compose module ActiveLayer
@mixin WaterDepth, FaciesBase, SedimentBuffer
export disintegrator, transporter, cementation_factor
using ..Common
using CarboKitten.Transport.Advection: transport, advection_coef!, transport_dC!, max_dt
using CarboKitten.Transport.Solvers: runge_kutta_4, forward_euler
using Unitful
using GeometryBasics
@kwdef struct Facies <: AbstractFacies
    diffusion_coefficient::typeof(1.0u"m/yr") = 0.0u"m/Myr"
    wave_velocity = _ -> (Vec2(0.0u"m/Myr", 0.0u"m/Myr"), Vec2(0.0u"1/Myr", 0.0u"1/Myr"))
end
@kwdef mutable struct State <: AbstractState
    active_layer::Array{Amount,3}
end
@kwdef struct Input <: AbstractInput
    intertidal_zone::Height = 0.0u"m"
    disintegration_rate::Rate = 50.0u"m/Myr"
    disintegration_transfer::Function = x -> x
    cementation_time::Union{typeof(1.0u"Myr"),Nothing} = nothing
    transport_solver = Val{:RK4}
    transport_substeps = :adaptive
end
courant_max(::Type{Val{:RK4}}) = 2.0
courant_max(::Type{Val{:forward_euler}}) = 1.0
transport_solver(f, _) = f
transport_solver(::Type{Val{:RK4}}, box) = runge_kutta_4(typeof(1.0u"m"), box)
transport_solver(::Type{Val{:forward_euler}}, _) = forward_euler
function cementation_factor(input::AbstractInput)
    if input.cementation_time === nothing
        return 1.0
    else
        return 1.0 - exp(input.time.Δt * log(1 / 2) / input.cementation_time)
    end
end
function adaptive_transporter(input)
    solver = transport_solver(input.transport_solver, input.box)
    w = water_depth(input)
    box = input.box
    Δt = input.time.Δt  # / input.transport_substeps
    fs = input.facies
    adv = Matrix{Vec2{Rate}}(undef, box.grid_size...)
    rct = Matrix{typeof(1.0u"1/Myr")}(undef, box.grid_size...)
    dC = Matrix{Rate}(undef, box.grid_size...)
    cm = courant_max(input.transport_solver)
    iz = input.intertidal_zone
    return function (state)
        wd = w(state)
        wd .+= iz
        C = state.active_layer
        for (i, f) in pairs(fs)
            advection_coef!(box, f.diffusion_coefficient, f.wave_velocity, wd, adv, rct)
            m = max_dt(adv, box.phys_scale, cm)
            steps = ceil(Int, Δt / m)
            # @debug "step $(state.step) - transport substeps $(steps)"
            subdt = Δt / steps
            for j in 1:steps
                solver(
                    (C, _) -> transport_dC!(input.box, adv, rct, C, dC),
                    view(C, i, :, :), TimeIntegration.time(input, state), subdt)
            end
        end
        for i in eachindex(C)
            if C[i] < zero(Amount)
                C[i] = zero(Amount)
            end
        end
    end
end
"""
    disintegrator(input) -> f!
Prepares the disintegration step. Returns a function `f!(state::State)`. The returned function
modifies the state, popping sediment from the `sediment_buffer` and returns an array of `Amount`.
"""
function disintegrator(input)
    max_h = input.disintegration_rate * input.time.Δt
    w = water_depth(input)
    output = Array{Float64,3}(undef, n_facies(input), input.box.grid_size...)
    depositional_resolution = input.depositional_resolution
    iz = input.intertidal_zone
    tf = input.disintegration_transfer
    return function (state)
        wn = w(state)
        wn .+= iz
        h = min.(max_h, state.sediment_height)
        h[wn.<=0.0u"m"] .= 0.0u"m"
        @assert all(h .<= max_h)
        state.sediment_height .-= h
        pop_sediment!(state.sediment_buffer, h ./ depositional_resolution .|> NoUnits, output)
        return output .* depositional_resolution
    end
end
"""
    transporter(input::Input) -> f
Prepares the transportation step. Returns a function `f(state::State, active_layer)`,
transporting the active layer, returning a transported `Amount` of sediment.
"""
function transporter(input)
    if input.transport_substeps == :adaptive
        return adaptive_transporter(input)
    end
    solver = transport_solver(input.transport_solver, input.box)
    w = water_depth(input)
    box = input.box
    Δt = input.time.Δt / input.transport_substeps
    steps = input.transport_substeps
    fs = input.facies
    iz = input.intertidal_zone
    return function (state)
        wd = w(state)
        wd .+= iz
        C = state.active_layer
        for (i, f) in pairs(fs)
            for j in 1:steps
                solver(
                    (C, _) -> transport(
                        input.box, f.diffusion_coefficient, f.wave_velocity,
                        C, wd),
                    view(C, i, :, :), TimeIntegration.time(input, state), Δt)
            end
        end
        for i in eachindex(C)
            if C[i] < zero(Amount)
                C[i] = zero(Amount)
            end
        end
    end
end
function write_header(input::AbstractInput, output::AbstractOutput)
    set_attribute(output, "intertidal_zone", input.intertidal_zone |> in_units_of(u"m"))
    set_attribute(output, "disintegration_rate", input.disintegration_rate |> in_units_of(u"m/Myr"))
    if input.cementation_time !== nothing
        set_attribute(output, "cementation_time", input.cementation_time |> in_units_of(u"Myr"))
    end
end
endIntertidal zone
You may pass the intertidal_zone argument to define a height above sea-level where sediment is still transported.
The following test has three sediment peaks, one below sea-level, one in the intertidal zone and one above the intertidal zone. In the latter two cases, sediment is transported.
The transport_test_input has a box of $120 \times 1$ with a resolution of 125m (15km total). We divide the domain into three sections: dry ($h > 10m$), intertidal ($10m > h > 0m$) and wet zones ($0m > h$). The dry zone never has transport, the wet zone always has transport, but the intertidal zone only has transport enabled when we set intertidal_zone to 10u"m".
#| creates: docs/src/_fig/1d-intertidal.svg
#| collect: figures
module Script
    using CarboKitten
    using CarboKitten.Testing: transport_test_input
    using CairoMakie
    include("plot-1d-evolution.jl")
    function three_peaks(x, y)
        sum(exp(-(x-μ)^2 / (2 * (0.5u"km")^2)) * 9.0u"m"
            for μ in [2.5u"km", 7.5u"km", 12.5u"km"])
    end
    function staircase(dx, dy, y0)
        return function (x, _)
            floor(x / dx) * dy + y0
        end
    end
    v_const(v_max) = _ -> (Vec2(v_max, 0.0u"m/yr"), Vec2(0.0u"1/yr", 0.0u"1/yr"))
    function main()
        CairoMakie.activate!()
        input = transport_test_input(
            initial_topography = staircase(5.0u"km", -10.0u"m", 10.0u"m"),
            initial_sediment = three_peaks,
            disintegration_rate = 50000.0u"m/Myr",
            wave_velocity = v_const(-1u"km/Myr"),
            intertidal_zone = 10u"m"
        )
        fig = plot_1d_evolution(input, 500)
        save("docs/src/_fig/1d-intertidal.svg", fig)
    end
end
Script.main()The following tests that we see the expected behaviours both without an intertidal zone (input1) and with (input1). The regions split at grid locations 40 and 80, so we test slices 10:30, 50:70 and 90:110. This ommits the boundaries where numeric artifacts could be encountered.
@testset "CarboKitten.Transport.IntertidalZone" begin
    using CarboKitten
    using CarboKitten.Testing: transport_test_input
    function end_sediment_height(input)
        state = ALCAP.initial_state(input)
        run_model((_, _) -> (), Model{ALCAP}, input, state)
        return state.sediment_height
    end
    function three_peaks(x, y)
        sum(exp(-(x-μ)^2 / (2 * (0.5u"km")^2)) * 9.0u"m"
            for μ in [2.5u"km", 7.5u"km", 12.5u"km"])
    end
    function staircase(dx, dy, y0)
        return function (x, _)
            floor(x / dx) * dy + y0
        end
    end
    v_const(v_max) = _ -> (Vec2(v_max, 0.0u"m/yr"), Vec2(0.0u"1/yr", 0.0u"1/yr"))
    input1 = transport_test_input(
        initial_topography = staircase(5.0u"km", -10.0u"m", 10.0u"m"),
        initial_sediment = three_peaks,
        disintegration_rate = 50000.0u"m/Myr",
        wave_velocity = v_const(-1u"km/Myr"),
        intertidal_zone = 0u"m"
    )
    output1 = end_sediment_height(input1)[:, 1]
    input2 = transport_test_input(
        initial_topography = staircase(5.0u"km", -10.0u"m", 10.0u"m"),
        initial_sediment = three_peaks,
        disintegration_rate = 50000.0u"m/Myr",
        wave_velocity = v_const(-1u"km/Myr"),
        intertidal_zone = 10u"m"
    )
    output2 = end_sediment_height(input2)[:, 1]
    @test output1[10:30] ≈ output1[50:70] atol=0.01u"m"
    @test !isapprox(output1[50:70], output1[90:110], atol=1.0u"m")
    @test !isapprox(output2[10:30], output2[50:70], atol=1.0u"m")
    @test output2[50:70] ≈ output2[90:110] atol=0.01u"m"
end- 1Literature on active (or mixing) layer transport modeling is vast. Most of which is concerned with much smaller time scales, and more complicated physics than we are mostly dealing with.
 - 2Note that in other approaches to active layer transport, like Paola 1992, there would be a factor $1/C_f$. Here we have a different interpretation to what the concentration means: the sediment settles down after transport, such that the concentration has no impact on the change in sediment surface elevation.
