Finite Difference Methods for Transport

Spacial Finite Differences

module DifferentialOperators

<<differential-operators>>

end

To solve the above equations we use three differential operators: central_difference, upwind and laplacian, defined in the context of a 2-d stencil operation.

Central differences approximates the derivative on a grid by,

\[dy_i = \frac{y_{i+1} - y_{i-1}}{2\Delta x}.\]

We define two variants for directions on the grid.

central_difference(::Type{Val{1}}, a::AbstractMatrix, dx) =
    (a[3, 2] - a[1, 2]) / (2dx)

central_difference(::Type{Val{2}}, a::AbstractMatrix, dx) =
    (a[2, 3] - a[2, 1]) / (2dx)

Upwind can be used when we know the derivative is being used in an advective context. If we are modeling flow, we better use the value in the direction where the flow is coming from,

\[dy_i = \begin{cases} \frac{y_{i+1} - y_{i}}{\Delta x} & \textrm{if} v < 0,\\ \frac{y_{i} - y_{i-1}}{\Delta x} & \textrm{if} v > 0 \end{cases}\]

In our implementation we also multiply with the velocity $v$ to prevent code duplication when expressing advective terms.

upwind(v::T, a1, a2, a3, dx) where {T} =
    if v < zero(T)
        v * (a3 - a2) / dx
    else
        v * (a2 - a1) / dx
    end

upwind(::Type{Val{1}}, v, a::AbstractMatrix, dx) =
    upwind(v, a[:, 2]..., dx)

upwind(::Type{Val{2}}, v, a::AbstractMatrix, dx) =
    upwind(v, a[2, :]..., dx)

Laplacian is an approximation for the second derivative. Since we differentiate twice we no longer have the annoying situation that the derivative lives "between" our spatial discretization,

\[\nabla^2 y_{i, j} = \frac{y_{i-1,j} + y_{i,j-1} + y_{i+1,j} + y_{i,j+1} - 4y_{i,j}}{\Delta x^2}.\]

laplacian(a::AbstractMatrix, dx) =
    (a[1, 2] + a[2, 1] + a[3, 2] + a[2, 3] - 4 * a[2, 2]) / dx^2

Solvers

Since we're trying to prevent complications, we use only explicit solvers for our PDE. We have forward Euler and Runge-Kutta 4 methods in place.

If you want better solvers, it should be possible (and relatively straight-forward) to implement this transport model using MethodOfLines.jl, but we haven't yet felt the need for that.

These methods modify the given input $y$ in-place.

module Solvers

using Unitful

function runge_kutta_4(::Type{T}, box) where {T}
    U = typeof(1.0 * unit(T) / u"Myr")
    k1 = Array{U}(undef, box.grid_size...)
    k2 = Array{U}(undef, box.grid_size...)
    k3 = Array{U}(undef, box.grid_size...)
    k4 = Array{U}(undef, box.grid_size...)
    function (df, y, t, dt)
        k1 .= df(y, t)
        k2 .= df(y .+ dt/2 .* k1, t + dt/2)
        k3 .= df(y .+ dt/2 .* k2, t + dt/2)
        k4 .= df(y .+ dt .* k3, t + dt)
        y .+= (k1 .+ 2 .* k2 .+ 2 .* k3 .+ k4) .* (dt/6)
    end
end

function forward_euler(df, y, t, dt)
    y .+= dt .* df(y, t)
end

end

Advection

We are solving sediment transport using finite difference methods. Our active layer approach to transport can be written as an equation in terms of the sediment concentration,

\[\partial_t C = - d \nabla (C \nabla w),\]

where $C$ is the sediment concentration, $d$ the diffusion coefficient and $w$ the water depth. Similarly, we can set the transport equation when we enable wave transport,

\[\partial_t C = - d \nabla (C \nabla w) - v \nabla C + s C \nabla w,\]

where $v(w)$ is the wave transport velocity and $s(w)$ the wave transport shear. This is now no longer a diffusion equation per se, rather an advective system. When we solve the equations, the first term is expanded, so we get,

\[\partial_t C = -d \nabla^2 w C - d \nabla w \nabla C - v \nabla C + s \nabla w C,\]

collecting terms:

\[\partial_t C = - (d \nabla w + v) \nabla C + (s \nabla w - d \nabla^2 w) C.\]

Note that $\partial_t C$ is a component of $\partial_t \eta$, and $\nabla \eta = - \nabla w$. So in that context this advection equation enacts diffusion.

d = diffusivity
v, s = wave_velocity(w[2, 2])

dw = (central_difference(Val{1}, w, dx), central_difference(Val{2}, w, dx))
adv = upwind(Val{1}, d * dw[1] + v[1], C, dx) +
      upwind(Val{2}, d * dw[2] + v[2], C, dx)
rct = (s[1] * dw[1] + s[2] * dw[2] - d * laplacian(w, dx)) * C[2, 2]
return rct - adv

Adaptive integration

To get efficient time integration we need to work with adaptive time-stepping. On each iteration we pre-compute the advection coefficients, and then the maximum time-step. Using the same pre-computed coefficients we then loop $n$ times such that $dt/n \le dt_{\textrm{max}}$.

Computing advection coefficients

Although this is a stencil operation, it is easier to compute this step directly. This way, we can compute dw and ddw with a single look-up of neighbouring grid cells. We store dw in a Vec2, expecting the wave_velocity to do the same.

Here adv stands for advection term and rct for reaction term, given the generic case

\[dC = - \textrm{adv} \nabla C + \textrm{rct} C\]

function advection_coef!(box::Box{BT}, diffusivity, wave_velocity, w, adv, rct) where {BT}
    d = diffusivity
    dx = box.phys_scale
    di = (CartesianIndex(1, 0), CartesianIndex(0, 1))
    for i = eachindex(IndexCartesian(), w)
        v, s = wave_velocity(w[i])

        wx1 = get_bounded(BT, w, i - di[1])
        wx2 = get_bounded(BT, w, i + di[1])
        wy1 = get_bounded(BT, w, i - di[2])
        wy2 = get_bounded(BT, w, i + di[2])

        dw = Vec2((wx2 - wx1) / (2dx), (wy2 - wy1) / (2dx))
        ddw = (wx1 + wx2 + wy1 + wy2 - 4*w[i]) / dx^2

        adv[i] = d * dw + v
        rct[i] = dot(s, dw) - d * ddw
    end
end

Given the advection coefficients we can figure out what the maximal timestep should be.

function max_dt(adv, dx, courant_max)
    u(a) = abs(a[1]) + abs(a[2])
    return courant_max / maximum(u.(adv) ./ dx)
end

Compute dC

Once we know our time step, we can use the adv and rct coefficients to evaluate the sediment transport. We again can't use the stencil or finite difference functionalities, since that would do needless computations.

function transport_dC!(box::Box{BT}, adv, rct, C, dC) where {BT}
    dx = box.phys_scale
    di = (CartesianIndex(1, 0), CartesianIndex(0, 1))

    @inline upwind(v::T, a, i, di) where {T} =
        if v < zero(T)
            v * (get_bounded(BT, a, i+di) - a[i]) / dx
        else
            v * (a[i] - get_bounded(BT, a, i-di)) / dx
        end

    for i = eachindex(IndexCartesian(), dC)
        dC[i] = rct[i] *  C[i] - upwind(adv[i][1], C, i, di[1]) - upwind(adv[i][2], C, i, di[2])
    end

    return dC
end

module Advection

using ....CarboKitten: Box
using ...Stencil: stencil!, Size
using ...BoundaryTrait: get_bounded
using ..DifferentialOperators: central_difference, upwind, laplacian
using Unitful
using GeometryBasics
using LinearAlgebra: dot

<<advection-coef>>

"""
    transport!(box, diffusivity, wave_velocity,
               C, w, dC)

Computes `dC` given a `box`, `diffusivity` constant in units of m/Myr,
`wave_velocity` is a function of water depth, returning both velocity in units
of m/Myr, and shear in units of 1/Myr, which should be the derivative of the
velocity w.r.t. water depth. `C` is the concentration of entrained sediment,
`w` the water depth, and `dC` the output derivative of `C`.
"""
function transport!(box::Box{BT}, diffusivity, wave_velocity, C, w, dC) where {BT}
    dx = box.phys_scale
    stencil!(BT, Size(3, 3), dC, C, w) do C, w
        <<advection-transport>>
    end
end

"""
    transport(box, diffusivity, wave_velocity, wave_shear,
               C, w)

Non-mutating version of [`transport!`](@ref). Allocates and returns `dC`.
"""
function transport(box::Box{BT}, diffusivity, wave_velocity, C::AbstractArray{T}, w) where {BT, T}
	dC = Array{typeof(1.0 * Unitful.unit(T) / u"Myr")}(undef, box.grid_size...)
    transport!(box, diffusivity, wave_velocity, C, w, dC)
    return dC
end

end

Tests

The following set of tests all involve mutilating a picture of a kitten. The default settings for TestModel have zero wave velocity and diffusivity. We'll enable them one by one. Note again, that what we call diffusivity, in the context of these tests doesn't necessarily behave like diffusion.

module Runner
using CarboKitten
using ProgressLogging

n_steps(input) = input.time.steps

function run_model(f, ::Type{Model{M}}, input) where {M}
    state = M.initial_state(input)
    f(0, state)

    @progress for i = 1:n_steps(input)
        M.step!(input, state)
        f(i, state)
    end

    return state
end

do_nothing(_i, _s) = ()

run_model(::Type{Model{M}}, input) where {M} = run_model(do_nothing, Model{M}, input)
end

module TestModel

using CarboKitten
using CarboKitten.Transport.Advection: transport
using Unitful

@kwdef struct Input
    box::Box
    time::TimeProperties
    initial_state::Array{Float64}
    topography::Array{typeof(1.0u"m")}

    diffusivity = 0.0u"m/Myr"
    wave_velocity = _ -> ((0.0u"m/Myr", 0.0u"m/Myr"), (0.0u"1/Myr", 0.0u"1/Myr"))

    solver
end

@kwdef mutable struct State
    time::typeof(1.0u"Myr")
    value::Array{Float64}
end

initial_state(input) = State(
    time = input.time.t0,
    value = copy(input.initial_state))

function step!(input, state)
    input.solver(
        (a, t) -> transport(
            input.box, input.diffusivity, input.wave_velocity,
            a, .-input.topography),
        state.value, state.time, input.time.Δt)
    state.time += input.time.Δt
end

end

Wave induced advection

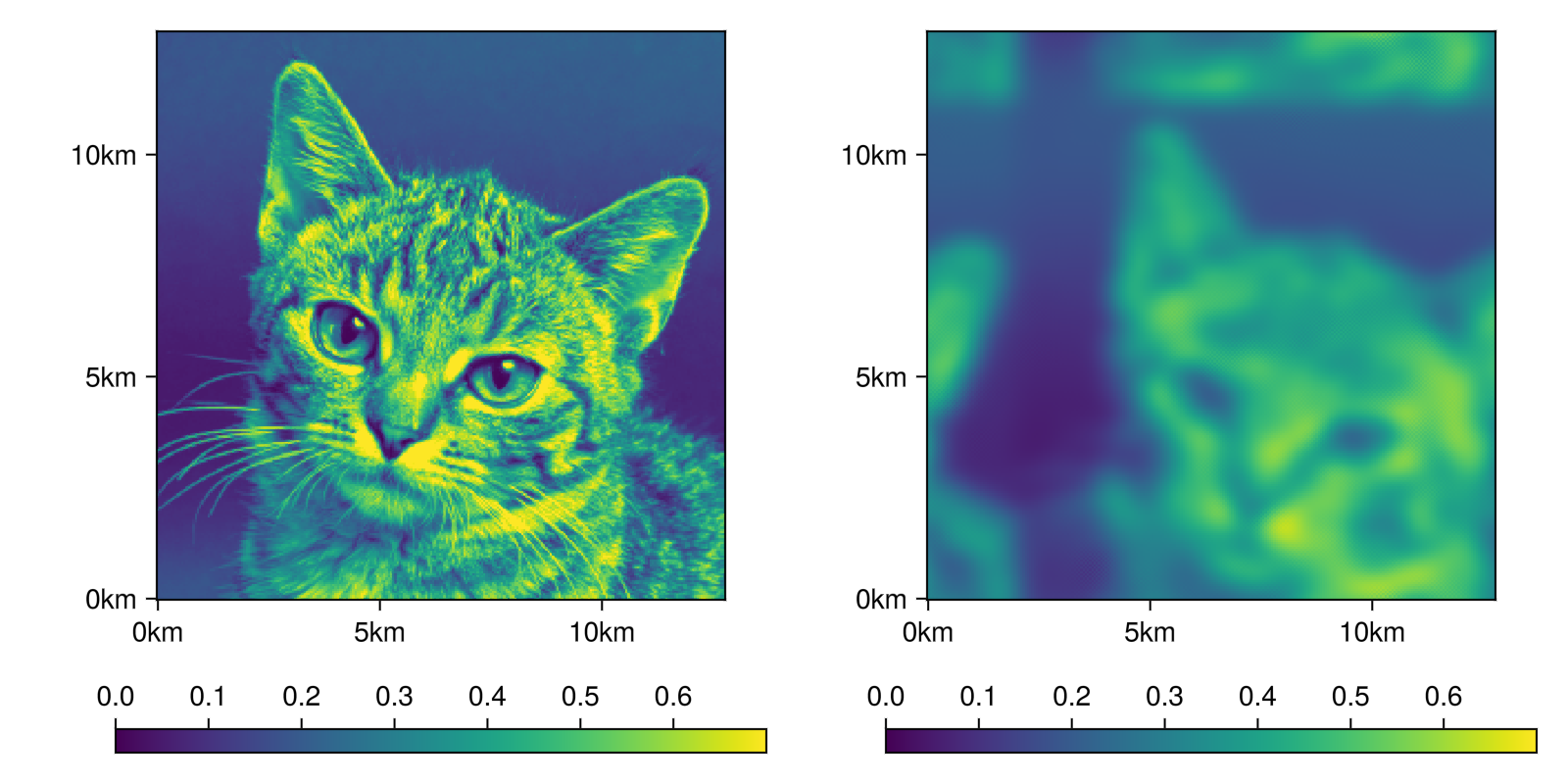

With only wave induced advection enabled, we should see a clear translation of the picture of the kitten. The additional diffusion is so called false diffusion, a numerical artifact of the upwind differencing scheme.

#| creates: docs/src/_fig/flying_cat.png
#| collect: figures

module FlyingCat

include("runner.jl")
include("test_model.jl")

using CarboKitten
using FileIO
using GLMakie

using CarboKitten.Transport.Solvers: forward_euler, runge_kutta_4

GLMakie.activate!()

const BOX = CarboKitten.Box{Periodic{2}}(
    grid_size=(256, 256), phys_scale=0.05u"km")

const INPUT = TestModel.Input(
    box = BOX,
    time = TimeProperties(Δt=100u"yr", steps=50),
    topography = zeros(typeof(1.0u"m"), BOX.grid_size),
    initial_state = load("data/cat256.pgm")'[:, end:-1:1] .|> Float64,
    wave_velocity = _ -> ((0.4u"m/yr", -0.3u"m/yr"), (0.0u"1/yr", 0.0u"1/yr")),
    solver = runge_kutta_4(Float64, BOX)
)

function run()
    x, y = box_axes(INPUT.box)

    fig = Figure(size=(800, 400))
    ax1 = Axis(fig[1, 1], aspect=1)
    hm1 = heatmap!(ax1, x, y, INPUT.initial_state, colorrange=(0.0,0.7))
    Colorbar(fig[2, 1], hm1, vertical=false)

    out = Runner.run_model(Model{TestModel}, INPUT)
    ax2 = Axis(fig[1, 2], aspect=1)
    hm2 = heatmap!(ax2, x, y, out.value, colorrange=(0.0,0.7))
    Colorbar(fig[2, 2], hm2, vertical=false)

    save("docs/src/_fig/flying_cat.png", fig)
end

end

FlyingCat.run()

Diffusion

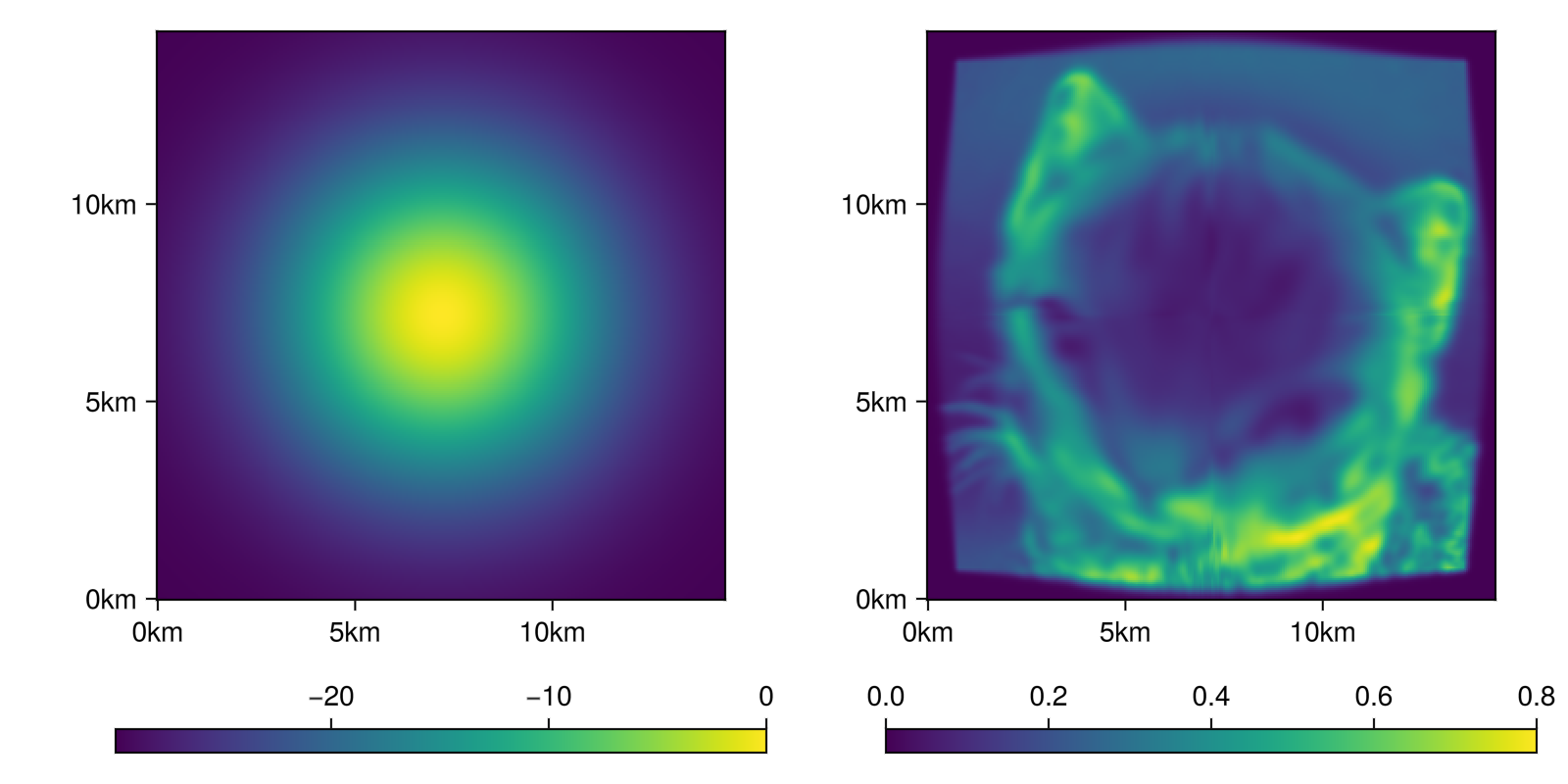

Next, we only enable the diffusivity term. We set a topography of a single Gaussian peak in the center of the box. Sediment is dispersed down slope.

#| creates: docs/src/_fig/exploding_kitten.png
#| collect: figures

module ExplodingKitten

include("runner.jl")
include("test_model.jl")

using CarboKitten
using FileIO
using GLMakie

using CarboKitten.Transport.Solvers: runge_kutta_4

GLMakie.activate!()

const N = 288

function load_cat()
    b = div(N - 256, 2)
    cat = zeros(Float64, N, N)
    cat[b+1:256+b, b+1:256+b] .= (load("data/cat256.pgm")'[:, end:-1:1] .|> Float64)
    return cat
end

const BOX = CarboKitten.Box{Reflected{2}}(grid_size=(N, N), phys_scale=0.05u"km")
const X, Y = box_axes(BOX)
const INPUT = TestModel.Input(
    box = BOX,
    time = TimeProperties(Δt=100u"yr", steps=100),
    initial_state = load_cat(),
    topography = ((x, y) -> 30.0u"m" * exp(-((x-7.2u"km")^2 + (y-7.2u"km")^2)/(2*(3.0u"km")^2)) - 30.0u"m").(X, Y'),
    diffusivity = 30.0u"m/yr",
    solver = runge_kutta_4(Float64, BOX)
)

function run()
    x, y = box_axes(INPUT.box)

    fig = Figure(size=(800, 400))
    ax1 = Axis(fig[1, 1], aspect=1)
    hm1 = heatmap!(ax1, x, y, INPUT.topography / u"m")
    Colorbar(fig[2,1], hm1, vertical=false)

    out = Runner.run_model(Model{TestModel}, INPUT)
    ax2 = Axis(fig[1, 2], aspect=1)
    hm2 = heatmap!(ax2, x, y, out.value, colorrange=(0.0,0.8))
    Colorbar(fig[2,2], hm2, vertical=false)

    save("docs/src/_fig/exploding_kitten.png", fig)
end

end

ExplodingKitten.run()

Scale invariance

From the conception of the transport model, it should be evident that the solution to the transport equations should be scale invariant, in the sense that we can multiply $C$ by any constant, solve the equations, then divide by the same constant and arrive at the same result.

using CarboKitten
using CarboKitten: Box, box_axes
using CarboKitten.Components.TimeIntegration: time
using CarboKitten.Transport.Solvers: runge_kutta_4
using CarboKitten.Transport.Advection: transport
using CarboKitten.Testing: transport_test_input
using Unitful

@testset "CarboKitten.Transport.Advection.scale-invariance" begin

# test transport code for scale invariance
let box = Box{Periodic{2}}(grid_size=(32, 32), phys_scale=1.0u"m")
    solver = runge_kutta_4(Float64, box)
    wave_velocity = _ -> ((0.5u"m/s", 0.0u"m/s"), (0.0u"1/s", 0.0u"1/s"))
    diffusivity = 5.0u"m/s"
    w = randn(box.grid_size...) * u"m"
    C1 = randn(box.grid_size...)
    C2 = C1 .* 10.0
    dt = 1.0u"s"
    df(C, _) = transport(box, diffusivity, wave_velocity, C, w)

    for i = 1:10
        solver(df, C1, 0.0u"s", dt)
        solver(df, C2, 0.0u"s", dt)
    end

    @test isapprox(C1 .* 10.0, C2)

end
end

@testset "CarboKitten.Transport.Advection.wave-transport" begin

function gaussian_initial_sediment(x, y)
	exp(-(x-10u"km")^2 / (2 * (0.5u"km")^2)) * 30.0u"m"
end

v_const(v_max) = _ -> (Vec2(v_max, 0.0u"m/yr"), Vec2(0.0u"1/yr", 0.0u"1/yr"))

input = transport_test_input(
    initial_topography = (x, y)  -> -35.0u"m",
    initial_sediment = gaussian_initial_sediment,
    disintegration_rate = 50000.0u"m/Myr",
    wave_velocity = v_const(-5u"km/Myr")
)

function center_of_mass(m, x)
    total_mass = sum(m)        # Total mass

    if total_mass ≈ 0.0u"m"
        return NaN * u"m"  # Avoid division by zero
    end

    x_com = sum(x .* sum(m, dims=2)) / total_mass  # Weighted average along x
    return x_com
end

state = ALCAP.initial_state(input)

result = []
times = []

run_model(Model{ALCAP}, input, state) do i, delta
    if mod(i-1, 250) == 0
        push!(result, deepcopy(state.sediment_height))
        push!(times, time(input, state))
    end
end

(x, y) = box_axes(input.box)

com_positions = [center_of_mass(r, x) for r in result]

@assert length(com_positions) == length(times)
observed_speeds = (com_positions[2:end] .- com_positions[1:end-1]) ./
    (times[2:end] .- times[1:end-1])

# Extract the expected speed from the wave transport
expected_speed = input.facies[1].wave_velocity(0.0u"m")[1][1]
tolerance = 1e-6 * expected_speed  # Set a tolerance for the comparison
# Check if all speeds are within tolerance
for speed in observed_speeds
    @test speed ≈ expected_speed atol=tolerance
end

end

Test onshore transport

The center of mass of an initial sediment distribution - taken to be a Gaussian bell curve - should move with the same speed as the onshore (wave) velocity while applying some tolerance for inaccuracies from the finite difference scheme for solving the PDEs.

@testset "CarboKitten.Transport.Advection.wave-transport" begin

function gaussian_initial_sediment(x, y)
	exp(-(x-10u"km")^2 / (2 * (0.5u"km")^2)) * 30.0u"m"
end

v_const(v_max) = _ -> (Vec2(v_max, 0.0u"m/yr"), Vec2(0.0u"1/yr", 0.0u"1/yr"))

input = transport_test_input(
    initial_topography = (x, y)  -> -30.0u"m",
    initial_sediment = gaussian_initial_sediment,
    disintegration_rate = 50000.0u"m/Myr",
    wave_velocity = v_const(-5u"km/Myr")
)

function center_of_mass(m, x)
    total_mass = sum(m)        # Total mass

    if total_mass ≈ 0.0u"m"
        return NaN * u"m"  # Avoid division by zero
    end

    x_com = sum(x .* sum(m, dims=2)) / total_mass  # Weighted average along x
    return x_com
end

state = ALCAP.initial_state(input)

result = []
times = []

run_model(Model{ALCAP}, input, state) do i, delta
    if mod(i-1, 250) == 0
        push!(result, deepcopy(state.sediment_height))
        push!(times, time(input, state))
    end
end

(x, y) = box_axes(input.box)

com_positions = [center_of_mass(r, x) for r in result]

@assert length(com_positions) == length(times)
observed_speeds = (com_positions[2:end] .- com_positions[1:end-1]) ./
    (times[2:end] .- times[1:end-1])

# Extract the expected speed from the wave transport
expected_speed = input.facies[1].wave_velocity(0.0u"m")[1][1]
tolerance = 1e-6 * expected_speed  # Set a tolerance for the comparison
# Check if all speeds are within tolerance
for speed in observed_speeds
    @test speed ≈ expected_speed atol=tolerance
end

end
