Visualization

The visualization of CarboKitten output is implemented in a Julia package extension. This is done so that CarboKitten.jl itself doesn't have to depend on Makie.jl (our main visualization tool), which has a large transient dependency stack. To make the Visualization extension of CarboKitten available, make sure to activate a Julia project where Makie is installed.

Makie primer

Makie.jl is a visualization package that creates exceptionally good looking (publication quality) plots in both 2D and 3D. There are three back-ends for Makie:

• CairoMakie for publication quality vector graphics, writing to SVG, PDF or PNG.
• GLMakie has better run-time performance than CairoMakie, especially when dealing with larger datasets and/or 3D visualizations. However, GLMakie can only produce rasterized images, so PNG, JPEG or directly to screen for interactive use.
• WGLMakie for online publication using WebGL. If you want interactive plots, like 3D plots that you can rotate in the browser, this is the one to use. Fair warning: this is also the least stable back-end for Makie.

To work with Makie, you need to import one of the three back-end packages. In general, every plot available in Makie has two variants. One is a direct function for plotting:

using CairoMakie

x = randn(10)
y = randn(10)

scatter(x, y)

The other requires a bit more prep, but gives you more control.

fig = Figure()
ax = Axis(fig[1,1])
scatter!(ax, x, y)

Here, we create a figure explicitly, then create a new set of axes somewhere on the grid in the figure, and then plot on that set of axes. The plotting functions accepting an Axis argument actually modify an existing context, which is why these functions always end with an exclamation mark, in this case scatter!.

If you like to know more about Makie, their "Getting started" is a good place to start.

Colours

We like to use colorblind safe pallete of colours as described on Paul Tol's website: '#4477AA', '#EE6677', '#228833', '#CCBB44', '#66CCEE', '#AA3377', '#BBBBBB'.

Project Extension

The Project Extension requires a front-end where the available methods are exposed.

module Visualization
export sediment_profile!, sediment_profile, wheeler_diagram!, wheeler_diagram, production_curve!,
       production_curve, glamour_view!, coeval_lines!, summary_plot

function print_instructions(func_name, args)
    println("Called `$(func_name)` with args `$(typeof.(args))`")
    println("This is an extension and only becomes available when you import {Cairo,GL,WGL}Makie before using this.")
end

function profile_plot! end

# profile_plot!(args...; kwargs...) = print_instructions("profile_plot!", args)
coeval_lines!(args...) = print_instructions("coeval_lines!", args)
sediment_profile!(args...) = print_instructions("sediment_profile!", args)
sediment_profile(args...) = print_instructions("sediment_profile", args)
wheeler_diagram!(args...) = print_instructions("wheeler_diagram!", args)
wheeler_diagram(args...) = print_instructions("wheeler_diagram", args)
production_curve(args...) = print_instructions("production_curve", args)
production_curve!(args...) = print_instructions("production_curve!", args)
stratigraphic_column!(args...) = print_instructions("production_curve!", args)
glamour_view!(args...) = print_instructions("glamour_view!", args)
summary_plot(args...) = print_instructions("summary_plot", args)

end  # module

module VisualizationExt

include("WheelerDiagram.jl")
include("ProductionCurve.jl")
include("StratigraphicColumn.jl")
include("SedimentProfile.jl")
include("GlamourView.jl")
include("SummaryPlot.jl")

end

Summary collage

module SummaryPlot

using CarboKitten.Visualization
import CarboKitten.Visualization: summary_plot
using CarboKitten.Export: read_header, read_volume, read_slice, group_datasets
using CarboKitten.Utility: in_units_of
using HDF5
using Unitful
using Makie

summary_plot(filename::AbstractString; kwargs...) = h5open(fid->summary_plot(fid; kwargs...), filename, "r")

function summary_plot(fid::HDF5.File; wheeler_smooth=(1, 1), show_unconformities=true)
    header = read_header(fid)
    data_groups = group_datasets(fid)

    if length(data_groups[:slice]) == 0 && length(data_groups[:volume]) == 0
        @warn "No volume data or slice data stored. Cannot produce summary view."
        return nothing
    end

    fig = Figure(size=(1200, 1000), backgroundcolor=:gray80)

    volume_data = if length(data_groups[:volume]) == 0
        @warn "No volume data stored, skipping topographic plots."
        nothing
    else
        if length(data_groups[:volume]) > 1
            @warn "Multiple volume data sets, picking first one."
        end

        volume_data = read_volume(fid[data_groups[:volume][1]])
        ax = Axis3(fig[1, 3]; title="topography", zlabel="depth [m]", xlabel="x [km]", ylabel="y [km]")
        glamour_view!(ax, header, volume_data)
        volume_data
    end

    section_data = if length(data_groups[:slice]) == 0
        @warn "No profile data slice stored, taking section of volume data along x-axis."

        y_slice = div(size(volume_data.sediment_thickness)[2], 2) + 1
        volume_data[:, y_slice]
    else
        read_slice(fid[data_groups[:slice][1]])
    end

    n_facies = size(section_data.production)[1]

    ax1 = Axis(fig[1:2,1:2])
    sediment_profile!(ax1, header, section_data; show_unconformities = show_unconformities)
    axislegend(ax1; merge=true, backgroundcolor=:gray80)

    ax2 = Axis(fig[4,1])
    ax3 = Axis(fig[4,2])
    sm, df = wheeler_diagram!(ax2, ax3, header, section_data; smooth_size=wheeler_smooth)
    Colorbar(fig[3,1], sm; vertical=false, label="sedimentation rate [m/Myr]")
    Colorbar(fig[3,2], df; vertical=false, label="dominant facies", ticks=1:n_facies)
    wi = section_data.write_interval
    ax4 = Axis(fig[4,3], title="sealevel curve", xlabel="sealevel [m]",
               limits=(nothing, (header.axes.t[1] |> in_units_of(u"Myr"),
                                 header.axes.t[1:wi:end][end] |> in_units_of(u"Myr"))))
    lines!(ax4, header.sea_level |> in_units_of(u"m"), header.axes.t |> in_units_of(u"Myr"))

    ax5 = Axis(fig[2,3])
    max_depth = minimum(header.initial_topography)
    production_curve!(ax5, fid["input"], max_depth=max_depth)

    linkyaxes!(ax2, ax3, ax4)

    fig
end

end

Wheeler diagram

#| creates: docs/src/_fig/wheeler_diagram.png
#| requires: data/output/alcap-example.h5
#| collect: figures

module Script

using CairoMakie
using CarboKitten.Export: read_slice
using CarboKitten.Visualization: wheeler_diagram

function main()
  header, data = read_slice("data/output/alcap-example.h5", :profile)
  fig = wheeler_diagram(header, data)
  save("docs/src/_fig/wheeler_diagram.png", fig)
end

end

Script.main()

module WheelerDiagram

import CarboKitten.Visualization: wheeler_diagram, wheeler_diagram!
using CarboKitten.Export: Header, Data, DataSlice, read_data, read_slice
using CarboKitten.Utility: in_units_of
using Makie
using Unitful
using CarboKitten.BoundaryTrait
using CarboKitten.Stencil: convolution


const na = [CartesianIndex()]

elevation(h::Header, d::DataSlice) =
    let bl = h.initial_topography[d.slice..., na],
        sr = h.axes.t[end] * h.subsidence_rate

        bl .+ d.sediment_thickness .- sr
    end

water_depth(header::Header, data::DataSlice) =
    let h = elevation(header, data),
        wi = data.write_interval,
        s = header.subsidence_rate .* (header.axes.t[1:wi:end] .- header.axes.t[end]),
        l = header.sea_level[1:wi:end]

        h .- (s.+l)[na, :]
    end

const Rate = typeof(1.0u"m/Myr")

function sediment_accumulation!(ax::Axis, header::Header, data::DataSlice;
    smooth_size::NTuple{2,Int}=(3, 11),
    colormap=Reverse(:curl),
    range::NTuple{2,Rate}=(-100.0u"m/Myr", 100.0u"m/Myr"))
    wi = data.write_interval
    magnitude = sum(data.deposition .- data.disintegration; dims=1)[1, :, :] ./ (header.Δt * wi)
    blur = convolution(Shelf, ones(Float64, smooth_size...) ./ *(smooth_size...))
    wd = zeros(Float64, length(header.axes.x), length(header.axes.t[1:wi:end]))
    blur(water_depth(header, data) / u"m", wd)
    mag = zeros(Float64, length(header.axes.x), length(header.axes.t[1:wi:end]) - 1)
    blur(magnitude / u"m/Myr", mag)

    ax.ylabel = "time [Myr]"
    ax.xlabel = "position [km]"
    xkm = header.axes.x |> in_units_of(u"km")
    tmyr = header.axes.t[1:wi:end] |> in_units_of(u"Myr")

    sa = heatmap!(ax, xkm, tmyr, mag;
        colormap=colormap, colorrange=range ./ u"m/Myr")
    #contour!(ax, xkm, tmyr, wd;
    #    levels=[0], color=:red, linewidth=2, linestyle=:dash)
    return sa
end

function dominant_facies!(ax::Axis, header::Header, data::DataSlice;
    smooth_size::NTuple{2,Int}=(3, 11),
    colors=Makie.wong_colors())
    n_facies = size(data.production)[1]
    colormax(d) = getindex.(argmax(d; dims=1)[1, :, :], 1)

    wi = data.write_interval
    dominant_facies = colormax(data.deposition)
    blur = convolution(Shelf, ones(Float64, smooth_size...) ./ *(smooth_size...))
    wd = zeros(Float64, length(header.axes.x), length(header.axes.t[1:wi:end]))
    blur(water_depth(header, data) / u"m", wd)

    ax.ylabel = "time [Myr]"
    ax.xlabel = "position [km]"

    xkm = header.axes.x |> in_units_of(u"km")
    tmyr = header.axes.t[1:wi:end] |> in_units_of(u"Myr")
    ft = heatmap!(ax, xkm, tmyr, dominant_facies;
        colormap=cgrad(colors[1:n_facies], n_facies, categorical=true),
        colorrange=(0.5, n_facies + 0.5))
    contourf!(ax, xkm, tmyr, wd;
        levels=[0.0, 10000.0], colormap=Reverse(:grays))
    #contour!(ax, xkm, tmyr, wd;
    #    levels=[0], color=:black, linewidth=2)
    return ft
end

function wheeler_diagram!(ax1::Axis, ax2::Axis, header::Header, data::DataSlice;
    smooth_size::NTuple{2,Int}=(3, 11),
    range::NTuple{2,Rate}=(-100.0u"m/Myr", 100.0u"m/Myr"))

    linkyaxes!(ax1, ax2)
    sa = sediment_accumulation!(ax1, header, data; smooth_size=smooth_size, range=range)
    ft = dominant_facies!(ax2, header, data; smooth_size=smooth_size)
    ax2.ylabel = ""

    return sa, ft
end

function wheeler_diagram(header::Header, data::DataSlice;
    smooth_size::NTuple{2,Int}=(3, 11),
    range::NTuple{2,Rate}=(-100.0u"m/Myr", 100.0u"m/Myr"))

    fig = Figure(size=(1000, 600))
    ax1 = Axis(fig[2, 1])
    ax2 = Axis(fig[2, 2])

    sa, ft = wheeler_diagram!(ax1, ax2, header, data; smooth_size=smooth_size, range=range)

    Colorbar(fig[1, 1], sa; vertical=false, label="sediment accumulation [m/Myr]")
    Colorbar(fig[1, 2], ft; vertical=false, ticks=1:3, label="dominant facies")
    fig
end

end

Production curve

#| creates: docs/src/_fig/production_curve.svg
#| requires: data/output/alcap-example.h5
#| collect: figures

using CairoMakie
using CarboKitten.Visualization: production_curve

save("docs/src/_fig/production_curve.svg", production_curve("data/output/alcap-example.h5"))

module ProductionCurve

using Makie
using Unitful
using HDF5

import CarboKitten.Components.Common: AbstractInput
import CarboKitten.Visualization: production_curve!, production_curve
using CarboKitten.Components.Production: Facies, production_rate

function production_curve!(ax, input::I) where I <: AbstractInput
    ax.title = "production at $(sprint(show, input.insolation; context=:fancy_exponent=>true))"
    ax.xlabel = "production [m/Myr]"
    ax.ylabel = "depth [m]"
    ax.yreversed = true

    for f in input.facies
        depth = (0.1:0.1:50.0)u"m"
        prod = [production_rate(input.insolation, f, d) for d in depth]
        lines!(ax, prod / u"m/Myr", depth / u"m")
    end
end

function production_curve(input::I) where I <: AbstractInput
    fig = Figure()
    ax = Axis(fig[1, 1])
    production_curve!(ax, input)
    fig
end

function production_curve(filename::AbstractString)
    h5open(filename, "r") do fid
        fig = Figure()
        ax = Axis(fig[1, 1])
        production_curve!(ax, fid["input"])
        fig
    end
end

function production_curve!(ax, g::HDF5.Group; max_depth=-50.0u"m")
    a = HDF5.attributes(g)
    insolation = 400.0u"W/m^2"  # a["insolation"][] * u"W/m^2"

    ax.title = "production at $(sprint(show, insolation; context=:fancy_exponent=>true))"
    ax.xlabel = "production [m/Myr]"
    ax.ylabel = "depth [m]"

    for i in 1:a["n_facies"][]
        fa = HDF5.attributes(g["facies$(i)"])
        f = Facies(
            maximum_growth_rate = fa["maximum_growth_rate"][] * u"m/Myr",
            extinction_coefficient = fa["extinction_coefficient"][] * u"m^-1",
            saturation_intensity = fa["saturation_intensity"][] * u"W/m^2")
        depth = (0.1u"m":0.1u"m":-max_depth)
        prod = [production_rate(insolation, f, d) for d in depth]
        lines!(ax, prod / u"m/Myr", - depth / u"m")
    end
end

end

Sediment profile

The sediment profile is probably the most important visualization that we provide. By default it allows us to study the sediment composition of a section, by plotting the argmax of the deposition. In cases where significant amounts of sediment is eroded, all deposition is plotted, and it is assumed that newest depositions are shown on top of possible older ones.

#| creates: docs/src/_fig/sediment_profile.png
#| requires: data/output/alcap-example.h5
#| collect: figures

module Script
using CairoMakie
using CarboKitten.Export: read_slice
using CarboKitten.Visualization: sediment_profile

function main()
    save("docs/src/_fig/sediment_profile.png",
        sediment_profile(read_slice("data/output/alcap-example.h5", :profile)...))
end
end

Script.main()

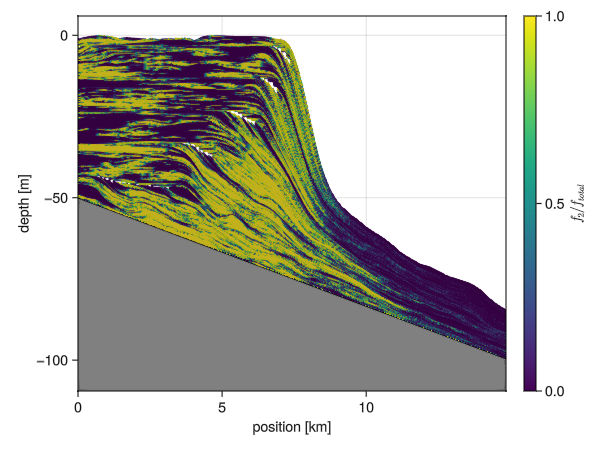

If you want to visualize something other than the argmax of the deposition, you may use the profile_plot! function. For example, we can plot the fraction of second facies over total.

#| creates: docs/src/_fig/profile_fraction.png
#| requires: data/output/alcap-example.h5
#| collect: figures

module Script
using GLMakie
using CarboKitten.Export: read_slice
using CarboKitten.Visualization: profile_plot!

function main()
    (header, slice) = read_slice("data/output/alcap-example.h5", :profile)
	fig = Figure()
	ax = Axis(fig[1, 1])

	x = header.axes.x
	t = header.axes.t

    plot = profile_plot!(x -> x[2]/sum(x), ax, header, slice; colorrange=(0, 1))
    Colorbar(fig[1, 2], plot; label=L"f_2 / f_{total}")

	save("docs/src/_fig/profile_fraction.png", fig)
	fig
end
end

Script.main()

Implementation

module SedimentProfile

import CarboKitten.Visualization: sediment_profile, sediment_profile!, profile_plot!, coeval_lines!

using CarboKitten.Visualization
using CarboKitten.Utility: in_units_of
using CarboKitten.Export: Header, Data, DataSlice, read_data, read_slice
using CarboKitten.Skeleton: skeleton

using Makie
using GeometryBasics
using Unitful

using Statistics: mean

const Rate = typeof(1.0u"m/Myr")
const Amount = typeof(1.0u"m")
const Length = typeof(1.0u"m")
const Time = typeof(1.0u"Myr")

const na = [CartesianIndex()]

elevation(h::Header, d::Data) =
    let bl = h.initial_topography[:, :, na],
        sr = (h.axes.t[end]-h.axes.t[1]) * h.subsidence_rate

        bl .+ d.sediment_thickness .- sr
    end

elevation(h::Header, d::DataSlice) =
    let bl = h.initial_topography[d.slice..., na],
        sr = (h.axes.t[end]-h.axes.t[1]) * h.subsidence_rate

        bl .+ d.sediment_thickness .- sr
    end

"""
    explode_quad_vertices(v)

Takes a three dimensional array representing a grid of vertices. This function duplicates these
vertices in the vertical direction, so that an amount of sediment can be given a single color.

Returns a tuple of vertices and faces (triangles), suitable for plotting with Makie's `mesh`
function.
"""
function explode_quad_vertices(v::Array{Float64,3})
    w, h, d = size(v)
    points = zeros(Float64, w, h - 1, 2, d)
    n_vertices = 2 * w * (h - 1)
    n_quads = (w - 1) * (h - 1)
    @views points[:, :, 1, :] = v[1:end, 1:end-1, :]
    @views points[:, :, 2, :] = v[1:end, 2:end, :]
    idx = reshape(1:n_vertices, w, (h - 1), 2)
    vtx1 = reshape(idx[1:end-1, :, 1], n_quads)
    vtx2 = reshape(idx[2:end, :, 1], n_quads)
    vtx3 = reshape(idx[2:end, :, 2], n_quads)
    vtx4 = reshape(idx[1:end-1, :, 2], n_quads)
    return reshape(points, n_vertices, d),
    vcat(hcat(vtx1, vtx2, vtx3), hcat(vtx1, vtx3, vtx4))
end

"""
    plot_unconformities(ax, header, data_slice, minwidth; kwargs...)
    plot_unconformities(ax, header, data_slice, minwidth::Bool; kwargs...)
    plot_unconformities(ax, header, data_slice, minwidth::Int; kwargs...)

Scans the given `data_slice` for unconformities, and plots those using
Makie `linesegments`. The `minwidth` argument controls for how many time
steps the platform needs to be exposed before we plot it. For `minwidth = true`
the default width of 10 time steps is taken.

Additional keyword arguments are forwarded to the `linesegments!` call.
"""
function plot_unconformities(ax::Axis, header::Header, data::DataSlice, minwidth::Nothing; kwargs...)
    @info "Not plotting unconformities, got minwidth: $(minwidth)"
end

function plot_unconformities(ax::Axis, header::Header, data::DataSlice, minwidth::Bool; kwargs...)
    if minwidth
        plot_unconformities(ax, header, data, 10; kwargs...)
    end
end

function plot_unconformities(ax::Axis, header::Header, data::DataSlice, minwidth::Int; kwargs...)
    x = header.axes.x |> in_units_of(u"km")
    wi = data.write_interval
    ξ = elevation(header, data)  # |> in_units_of(u"m")
    water_depth = ξ .- (header.subsidence_rate .* (header.axes.t[1:wi:end] .- header.axes.t[end]) .+ header.sea_level[1:wi:end])[na, :]
    hiatus = skeleton(water_depth .> 0.0u"m", minwidth=minwidth)

    if !isempty(hiatus[1])
        verts = [(x[pt[1]], ξ[pt...] |> in_units_of(u"m")) for pt in hiatus[1]]
        linesegments!(ax, vec(permutedims(verts[hiatus[2]])); kwargs...)
    end
end

"""
    coeval_lines!(ax::Axis, header::Header, data::DataSlice, tics::Bool)

Plot coeval lines using default settings. If `tics` is false, nothing is done.
"""
function coeval_lines!(ax::Axis, header::Header, data::DataSlice, n_tics::Bool)
    if !n_tics
        return
    else
        coeval_lines!(ax, header, data)
    end
end

"""
    coeval_lines!(ax::Axis, header::Header, data::DataSlice, tics::Vector{Time}; kwargs...)

Plot coeval lines for given times. The times in `tics` are looked up in `header.axes.t`
to find which indices to plot.
"""
function coeval_lines!(ax::Axis, header::Header, data::DataSlice, tics::Vector{Time}; kwargs...)
    t = header.axes.t[1:data.write_interval:end]
    indices::Vector{Int} = [searchsortedfirst(t, i) for i in tics]
    coeval_lines!(ax, header, data, indices; kwargs...)
end

"""
    coeval_lines!(ax::Axis, header::Header, data::DataSlice, n_tics::Tuple{Int, Int})

Plot coeval lines on regular intervals given by `n_tics`. The tuple gives the number of intervals
for both minor and major tics, plotted as dotted and solid black lines respectively.
If you need more control over the aestetics of these lines, use the other `coeval_lines!` methods.
"""
function coeval_lines!(ax::Axis, header::Header, data::DataSlice, n_tics::Tuple{Int, Int} = (4, 8))
    n_steps = div(header.time_steps, data.write_interval)
    n_major_tics, n_minor_tics = n_tics

    major_tics = div.(n_steps:n_steps:n_steps*n_major_tics, n_major_tics) .+ 1
    minor_tics = filter(
        t->!(t in major_tics),
        div.(n_steps:n_steps:n_steps*n_minor_tics, n_minor_tics) .+ 1) |> collect

    coeval_lines!(ax, header, data, minor_tics, color=:black, linewidth=1, linestyle=:dot)
    coeval_lines!(ax, header, data, major_tics, color=:black, linewidth=1, linestyle=:solid)
end

"""
    coeval_lines!(ax::Axis, header::Header, data::DataSlice, tics::Vector{Int}; kwargs...)

Plot coeval lines for the given indices. The `kwargs...` are forwarded to a call to Makie's
`lines!` procedure.
"""
function coeval_lines!(ax::Axis, header::Header, data::DataSlice, tics::Vector{Int}; kwargs...)
    x = header.axes.x |> in_units_of(u"km")
    h = elevation(header, data) |> in_units_of(u"m")
    for t in tics
        lines!(ax, x, h[:, t]; kwargs...)
    end
end

function plot_sealevel!(ax::Axis, header::Header)
    sea_level = header.sea_level[end] |> in_units_of(u"m")
    hlines!(ax, sea_level, color=:lightblue, linewidth=5, label="end sea level")
end

"""
    profile_plot!(ax, header, data_slice; mesh_args...)

Generic profile plot. This sets up a mesh for plotting with the Makie `mesh!`
function, plots the initial topography and the mesh by passing `mesh_args...`.

The `color` array should have the same size as a single facies for `data.production`.
"""
function profile_plot!(ax::Axis, header::Header, data::DataSlice; color::AbstractArray, mesh_args...)
    x = header.axes.x |> in_units_of(u"km")
    t = header.axes.t |> in_units_of(u"Myr")

    n_facies, n_x, n_t = size(data.production)
    ξ = elevation(header, data)  # |> in_units_of(u"m")

    verts = zeros(Float64, n_x, n_t+1, 2)
    @views verts[:, :, 1] .= x
    @views verts[:, :, 2] .= ξ |> in_units_of(u"m")
    v, f = explode_quad_vertices(verts)

    total_subsidence = header.subsidence_rate * (header.axes.t[end] - header.axes.t[1])
    bedrock = (header.initial_topography[data.slice...] .- total_subsidence) |> in_units_of(u"m")
    lower_limit = minimum(bedrock) - 20
    band!(ax, x, lower_limit, bedrock; color=:gray, label="initial topography")
    lines!(ax, x, bedrock; color=:black, label="initial topography")
    ylims!(ax, lower_limit + 10, nothing)
    xlims!(ax, x[1], x[end])
    ax.xlabel = "position [km]"
    ax.ylabel = "depth [m]"

    c = reshape(color, n_x * n_t)
    mesh!(ax, v, f; color=vcat(c, c), mesh_args...)
end

"""
    profile_plot!(f, ax, header, data_slice; mesh_args...)

Instead of explicitely passing the color data as an array, this generates the
colors from a function `f` over the deposition data. So `f` should have signature
`AbstractVector -> Float` or possibly `AbstractVector -> RGB` (whatever Makie accepts).
Here the vector input has size of the number of facies.
"""
function profile_plot!(f::F, ax::Axis, header::Header, data::DataSlice; mesh_args...) where {F}
    color = f.(eachslice(data.deposition, dims=(2, 3)))
    profile_plot!(ax, header, data; color=color, mesh_args...)
end

"""
    sediment_profile!(ax, header, data; show_unconformities)

Plot the sediment profile, choosing colour by dominant facies type (argmax). Unconformaties
are shown when the sediment is subaerially exposed (even if sediment is still deposited
due to a set intertidal zone).
"""
function sediment_profile!(ax::Axis, header::Header, data::DataSlice;
                           show_unconformities::Union{Nothing,Bool,Int} = true,
                           show_coeval_lines::Union{Bool,Tuple{Int, Int},Vector{Int},Vector{Time}} = true,
                           show_sealevel::Bool = true)
    x = header.axes.x |> in_units_of(u"km")
    t = header.axes.t |> in_units_of(u"Myr")
    n_facies = size(data.production)[1]

    if show_sealevel
        plot_sealevel!(ax, header)
    end

    plot = profile_plot!(argmax, ax, header, data; alpha=1.0,
        colormap=cgrad(Makie.wong_colors()[1:n_facies], n_facies, categorical=true))

    coeval_lines!(ax, header, data, show_coeval_lines)

    minwidth = show_unconformities
    plot_unconformities(ax, header, data, minwidth; label = "unconformities",
                        color=:white, linestyle=:dash, linewidth=1)

    ax.title = "sediment profile"
    return plot
end

"""
    sediment_profile(header, data_slice; show_unconformities=true)

Plot the sediment profile from `data_slice`. This takes the deposited sediments and
find the dominant facies at every point. By default unconformities are shown using
dashed white lines. If this generates too much visual noise, you can increase the
treshold (default 10).
"""
function sediment_profile(header::Header, data_slice::DataSlice; show_unconformities::Union{Bool,Int,Nothing} = true)
    fig = Figure(size=(1000, 600))
    ax = Axis(fig[1, 1])
    sediment_profile!(ax, header, data_slice; show_unconformities = show_unconformities)
    return fig
end

end  # module

Stratigraphic Column

module StratigraphicColumn

using Makie
using Unitful

import CarboKitten.Visualization: stratigraphic_column!
using CarboKitten.Export: Header, DataColumn, stratigraphic_column, age_depth_model


function scdata(header::Header, data::DataColumn)
    n_facies = size(data.production)[1]
    n_times = length(header.axes.t) - 1
    sc = zeros(Float64, n_facies, n_times)
    for f = 1:n_facies
        sc[f, :] = stratigraphic_column(header, data, f) / u"m"
    end

    colormax(d) = getindex.(argmax(d; dims=1)[1, :], 1)
    adm = age_depth_model(data.sediment_thickness)

    return (ys_low=adm[1:end-1] / u"m", ys_high=adm[2:end] / u"m", facies=colormax(sc)[1:end])
end


function stratigraphic_column!(ax::Axis, header::Header, data::DataColumn; color=Makie.wong_colors())
    (ys_low, ys_high, facies) = scdata(header, data)
    hspan!(ax, ys_low, ys_high; color=color[facies])
end

function stratigraphic_column!(ax::Axis, header::Header, data::Observable{DataColumn}; color=Makie.wong_colors())
    _scdata = lift(d -> scdata(header, d), data)
    _ys_low = lift(d -> d.ys_low, _scdata)
    _ys_high = lift(d -> d.ys_high, _scdata)
    _color = lift(d -> color[d.facies], _scdata)
    hspan!(ax, _ys_low, _ys_high; color=_color)
end

end

Skeleton

module Skeleton

using .Iterators: filter, map as imap, product, flatten, drop
using ..Utility: enumerate_seq, find_ranges

const Vertex = Tuple{Int, UnitRange{Int}}

pairs(it) = zip(it, drop(it, 1))
edge(a::Vertex, b::Vertex) = isempty(a[2] ∩ b[2]) ? nothing : (a[1], b[1])
edges_between(a, b) = filter(!isnothing, imap(splat(edge), product(a, b)))
middle(a::UnitRange{Int}) = (a.start + a.stop) ÷ 2

"""
    skeleton(bitmap::AbstractMatrix{Bool})

Computes the skeleton of a bitmap, i.e. reduces features with some thickness to
a set of line segments. This function is designed with stratigraphic application
in mind: we scan each row in the bitmap for connected regions, then link neighbouring
regions when they overlap. The result is a graph that represents hiatus in the sediment
accumulation.

Returns a tuple of `vertices` and `edges`, where `vertices` is a vector of 2-tuples and
`edges` is a nx2 matrix of indices into the `vertices`.
"""
function skeleton(bitmap::AbstractMatrix{Bool}; minwidth=10)
    vertex_rows = (filter(r->length(r)>=minwidth, find_ranges(row)) for row in eachrow(bitmap))
    edges::Vector{Tuple{Int,Int}} = collect(flatten(map(splat(edges_between), pairs(enumerate_seq(vertex_rows)))))
    vertices::Vector{Tuple{Int,Int}} = collect(flatten(((i, middle(v)) for v in vs) for (i, vs) in enumerate(vertex_rows)))
    return vertices, reshape(reinterpret(Int, edges), (2,:))'
end

end

Glamour View (3D)

Not very useful but highly glamourous.

#| creates: docs/src/_fig/glamour_view.png
#| requires: data/output/cap1.h5
#| collect: figures

module Script

using GLMakie
using CarboKitten.Export: read_volume
using CarboKitten.Visualization: glamour_view!
using HDF5

function main()
    fig = Figure()
    ax = Axis3(fig[1,1])
    header, volume = read_volume("data/output/cap1.h5", :topography)
    glamour_view!(ax, header, volume)
    save("docs/src/_fig/glamour_view.png", fig)
end

end

Script.main()

module GlamourView

import CarboKitten.Visualization: glamour_view!
using CarboKitten.Utility: in_units_of
using CarboKitten.Export: Header, DataVolume
using Makie
using HDF5
using Unitful

function glamour_view!(ax::Makie.Axis3, header::Header, data::DataVolume; colormap=Reverse(:speed))
    x = header.axes.x[data.slice[1]] |> in_units_of(u"km")
    y = header.axes.y[data.slice[2]] |> in_units_of(u"km")
	xy_aspect = x[end] / y[end]

	ax.aspect = (xy_aspect, 1, 1)
	ax.azimuth = -π/3

    n_steps = size(data.sediment_thickness)[3]
	grid_size = (length(x), length(y))
	steps_between = 2
	selected_steps = [1, ((1:steps_between) .* n_steps .÷ (steps_between + 1))..., n_steps]
	bedrock = header.initial_topography .- header.axes.t[end] * header.subsidence_rate

	result = Array{Float64, 3}(undef, grid_size..., length(selected_steps))
	for (i, j) in enumerate(selected_steps)
        result[:, :, i] = (data.sediment_thickness[:,:,j] .+ bedrock) |> in_units_of(u"m")
	end

	surface!(ax, x, y, result[:,:,1];
		color=ones(grid_size),
		colormap=:grays)

	for s in eachslice(result[:,:,2:end-1], dims=3)
		surface!(ax, x, y, s;
			colormap=(colormap, 0.7))
	end

	surface!(ax, x, y, result[:,:,end];
		colormap=colormap)
	lines!(ax, x, zeros(grid_size[1]), result[:, 1, end]; color=(:white, 0.5), linewidth=1)
	lines!(ax, fill(x[end], grid_size[2]), y, result[end, :, end]; color=(:white, 0.5), linewidth=1)
end

function glamour_view(header::Header, data::DataVolume; colormap=Reverse(:speed))
    fig = Figure()
    ax = Axis3(fig[1, 1])
    glamour_view!(ax, header, data, colormap=colormap)
    return fig, ax
end

end
