Topography Plots

We have two kinds of topography plots available.

1. Contour map: good for inspecting the morphology of atolls or small island chains.
2. Glamour view: a 3D surface plot. Good for getting a quick overview of the quality of your run, for instance to see if there are no unphysical spikes in the output. Otherwise mostly here for aestethic purposes, which is why it is called glamour_view.

Contour Map

TODO: This code is not yet available in CarboKitten.Visualization, but you can copy paste this for now.

function topography!(ax, header, data; colormap=:nuuk, levels=[-10, -5, 0, 5, 10])
    ax.aspect = DataAspect()

    h = header
    s = data.sediment_thickness[:, :, end]
    t = h.initial_topography .+ s .- ((h.axes.t[end] - h.axes.t[1]) * h.subsidence_rate)

    hm = contourf!(
        ax,
        h.axes.x |> in_units_of(u"km"),
        h.axes.y |> in_units_of(u"km"),
        t / u"m", levels=levels, colormap=colormap, extendlow=:auto, extendhigh=:auto)

    contour!(
        ax,
        h.axes.x |> in_units_of(u"km"),
        h.axes.y |> in_units_of(u"km"),
        t / u"m", levels=levels, color=:black, labels=true)
    return hm
end

Glamour View

Not very useful but highly glamourous.

Test 1: CAP Output

#| creates: docs/src/_fig/glamour_view.png
#| requires: data/output/cap1.h5
#| collect: figures

module Script

using GLMakie
using CarboKitten.Export: read_volume
using CarboKitten.Visualization: glamour_view!
using HDF5

function main()
    fig = Figure()
    ax = Axis3(fig[1,1])
    header, volume = read_volume("data/output/cap1.h5", :topography)
    glamour_view!(ax, header, volume)
    save("docs/src/_fig/glamour_view.png", fig)
end

end

Script.main()

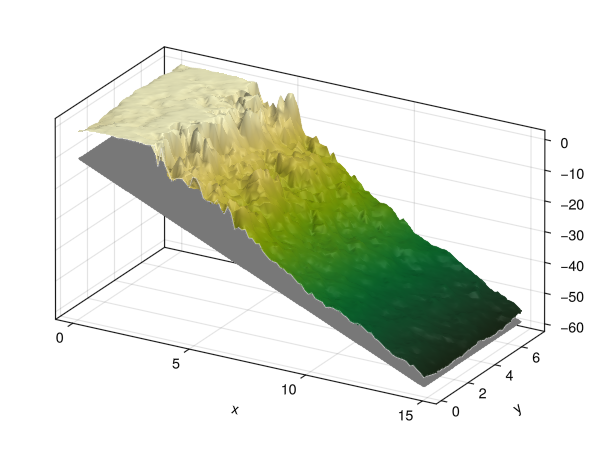

Test 2: Single Slice Output (issue 196)

#| creates: docs/src/_fig/glamour_view_single.png
#| collect: figures
module Script

using GLMakie
using CarboKitten
using CarboKitten.Visualization: glamour_view!
using HDF5

const PERIOD = 200.0u"kyr"
const AMPLITUDE = 4.0u"m"

const FACIES = [
    CAP.Facies(
    viability_range = (4, 10),
    activation_range = (6, 10),
    maximum_growth_rate = 500u"m/Myr",
    extinction_coefficient = 0.8u"m^-1",
    saturation_intensity = 60u"W/m^2"),

    CAP.Facies(
    viability_range = (4, 10),
    activation_range = (6, 10),
    maximum_growth_rate = 400u"m/Myr",
    extinction_coefficient = 0.1u"m^-1",
    saturation_intensity = 60u"W/m^2"),

    CAP.Facies(
    viability_range = (4, 10),
    activation_range = (6, 10),
    maximum_growth_rate = 100u"m/Myr",
    extinction_coefficient = 0.005u"m^-1",
    saturation_intensity = 60u"W/m^2")
]

const INPUT = CAP.Input(
	tag = "cap1",
	box = CarboKitten.Box{Coast}(grid_size=(100, 50), phys_scale=150.0u"m"),
	time = TimeProperties(
		Δt = 200.0u"yr",
		steps = 1000),

    output = Dict(
        :topography => OutputSpec(write_interval = 1000),
        :profile => OutputSpec(slice = (:, 25))),

	sea_level = t -> 4.0u"m" * sin(2π * t / 0.2u"Myr"),
	initial_topography = (x, y) -> - x / 300.0,
	subsidence_rate = 50.0u"m/Myr",
	insolation = 400.0u"W/m^2",
	facies = FACIES)

function main()
    fig = Figure()
    ax = Axis3(fig[1,1])
    out = MemoryOutput(INPUT)
    run_model(Model{CAP}, INPUT, out)
    glamour_view!(ax, out.header, out.data_volumes[:topography])
    save("docs/src/_fig/glamour_view_single.png", fig)
end

end

Script.main()

Implementation

module GlamourView

import CarboKitten.Visualization: glamour_view!
using CarboKitten.Utility: in_units_of
using CarboKitten.Export: Header, DataVolume
using Makie
using HDF5
using Unitful

function glamour_view!(ax::Makie.Axis3, header::Header, data::DataVolume; colormap=Reverse(:speed))
    x = header.axes.x[data.slice[1]] |> in_units_of(u"km")
    y = header.axes.y[data.slice[2]] |> in_units_of(u"km")
    xy_aspect = x[end] / y[end]

    ax.aspect = (xy_aspect, 1, 1)
    ax.azimuth = -π/3

    n_steps = size(data.sediment_thickness, 3)
    grid_size = (length(x), length(y))

    steps_between = 2
    selected_steps::Vector{Int} = if n_steps > (2 + steps_between)
        [1, ((1:steps_between) .* n_steps .÷ (steps_between + 1))..., n_steps]
    else
        collect(1:n_steps)
    end

    bedrock = header.initial_topography .- (header.axes.t[end] - header.axes.t[1]) * header.subsidence_rate
    result = Array{Float64, 3}(undef, grid_size..., length(selected_steps))
    for (i, j) in enumerate(selected_steps)
        result[:, :, i] = (data.sediment_thickness[:,:,j] .+ bedrock) |> in_units_of(u"m")
    end

    surface!(ax, x, y, result[:,:,1];
    color=ones(grid_size),
    colormap=:grays)

    for s in eachslice(result[:,:,2:end-1], dims=3)
        surface!(ax, x, y, s;
        colormap=(colormap, 0.7))
    end

    surface!(ax, x, y, result[:,:,end]; colormap=colormap)
    lines!(ax, x, zeros(grid_size[1]), result[:, 1, end]; color=(:white, 0.5), linewidth=1)
    lines!(ax, fill(x[end], grid_size[2]), y, result[end, :, end]; color=(:white, 0.5), linewidth=1)
end

function glamour_view(header::Header, data::DataVolume; colormap=Reverse(:speed))
    fig = Figure()
    ax = Axis3(fig[1, 1])
    glamour_view!(ax, header, data, colormap=colormap)
    return fig, ax
end

end
