Markov order metric (Burgess 2016)
Value
scalar, the Markov order metric introduced in Burgess (2016), https://doi.org/10.2110/jsr.2016.10
References
Burgess, Peter. 2016. "Identifying Ordered Strata: Evidence, Methods, and Meaning." Journal of Sedimentary Research. doi:10.2110/jsr.2016.10
See also
transition_matrix() to estimate the facies transition matrix from a stratigraphic column, get_rom() to get the runs order metric
Examples
#see vignette for an extended example and explanation via
# vignette("stratorder")
# uniform bed thickness, ordered facies
s = as_stratcol(thickness = runif(30), fa = rep(c(1,2,3), 10))
s = shuffle_col(s, allow_rep = TRUE) # randomize order of beds, allowing for repetitions

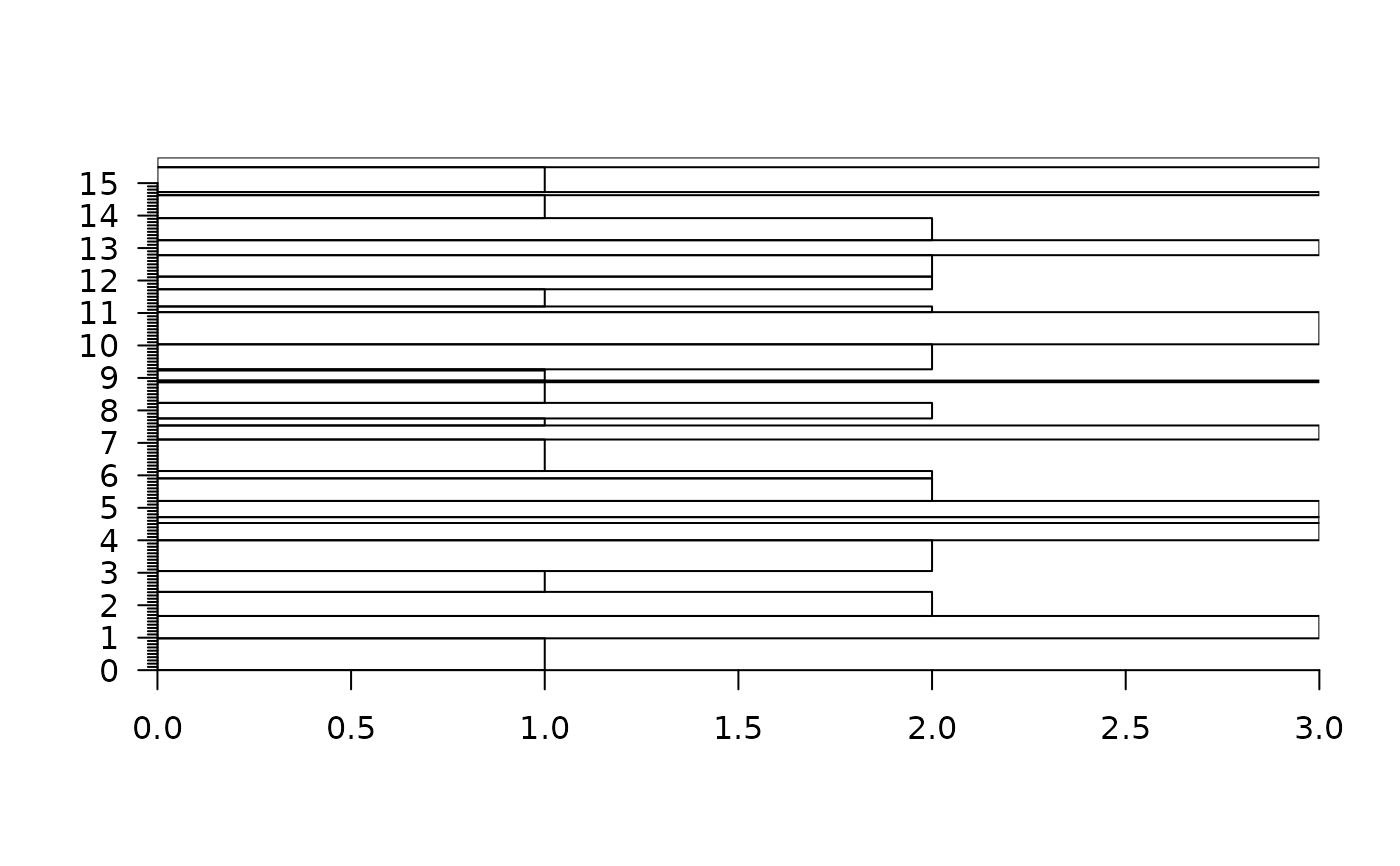

plot(s)
s_merged = merge_beds(s, mode = "identical facies")

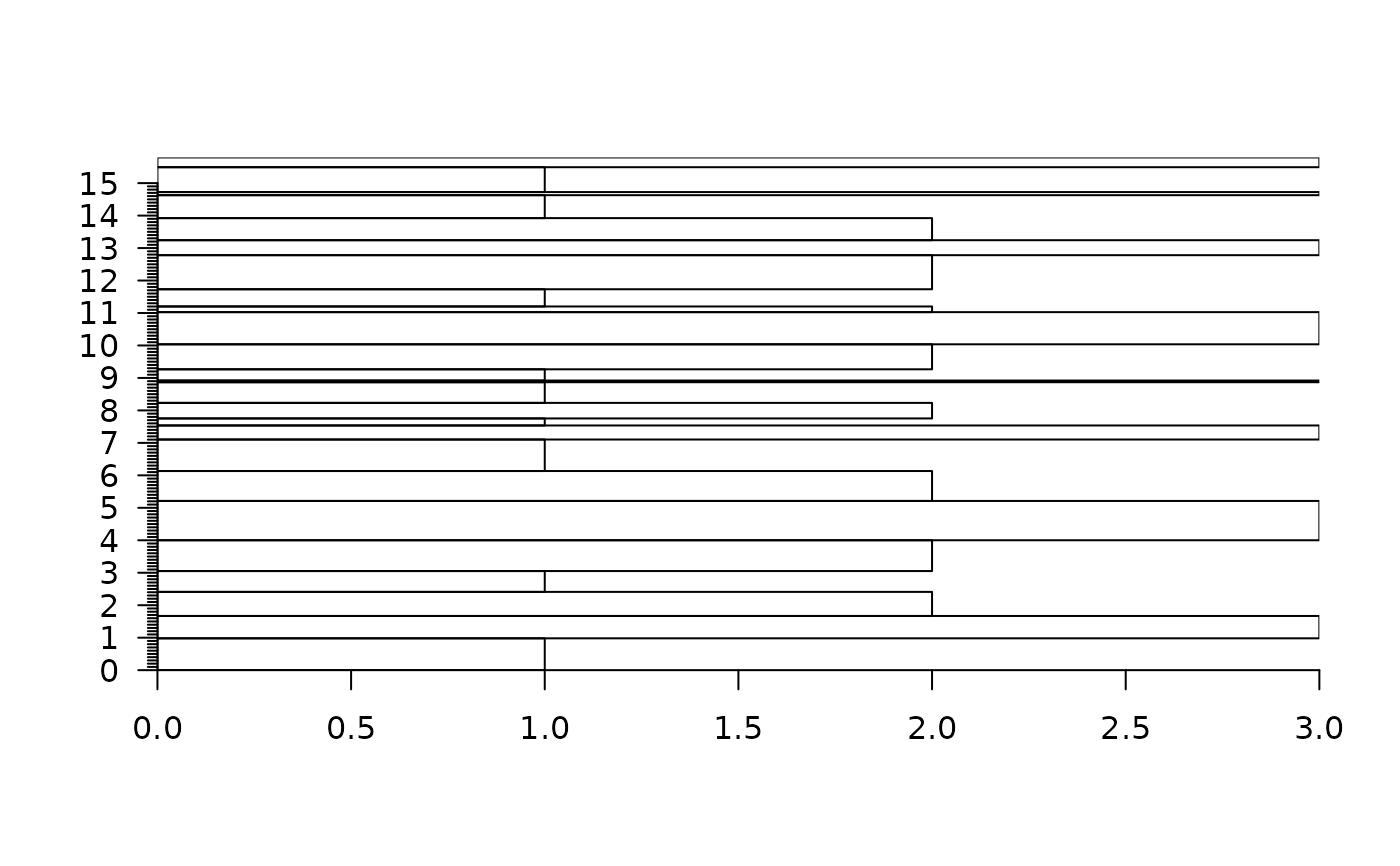

plot(s_merged)
s_ord_names = order_facies_names(s_merged)

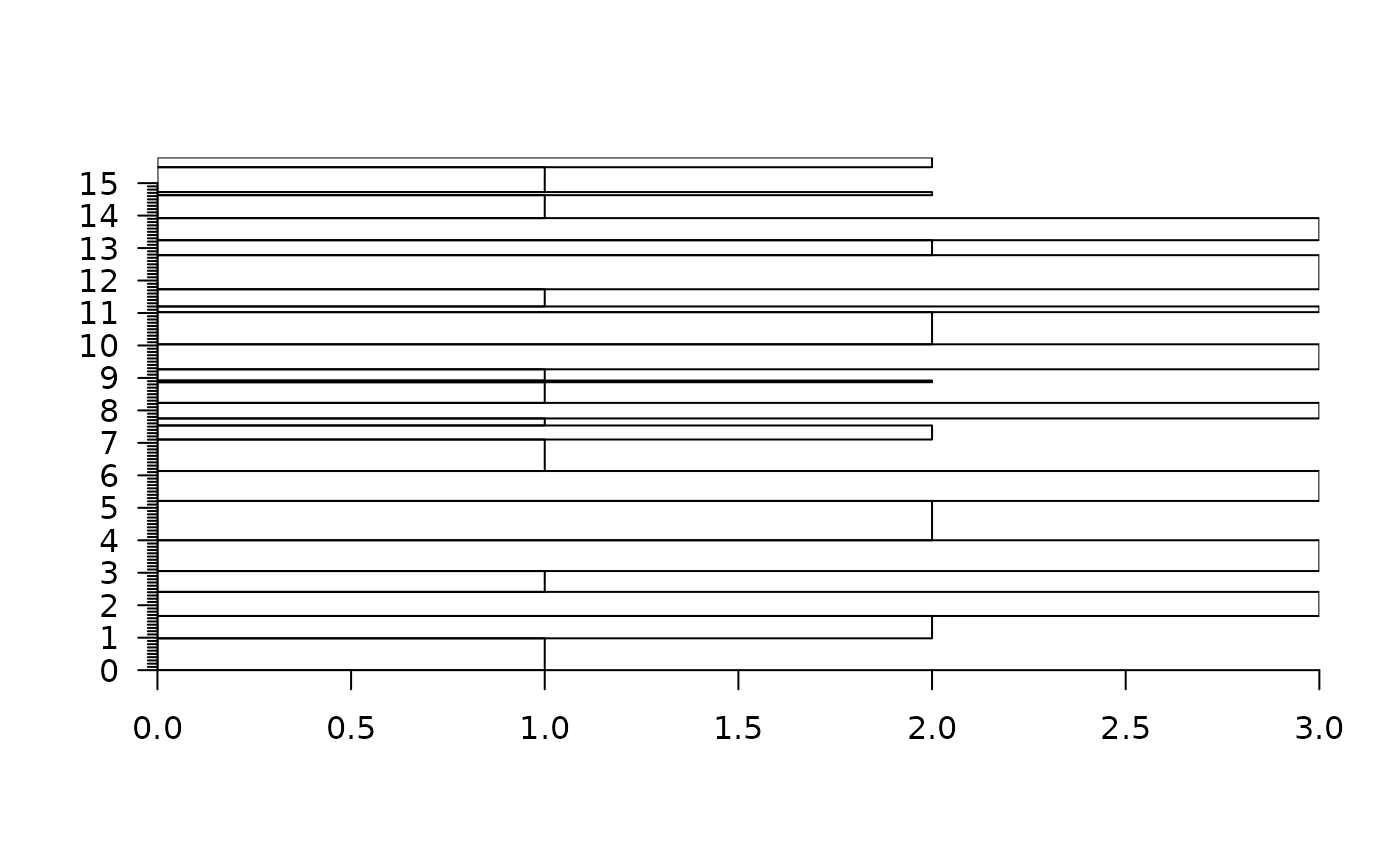

plot(s_ord_names)
m = transition_matrix(s_ord_names)
get_mom(m)
#> [1] 0.1666667
